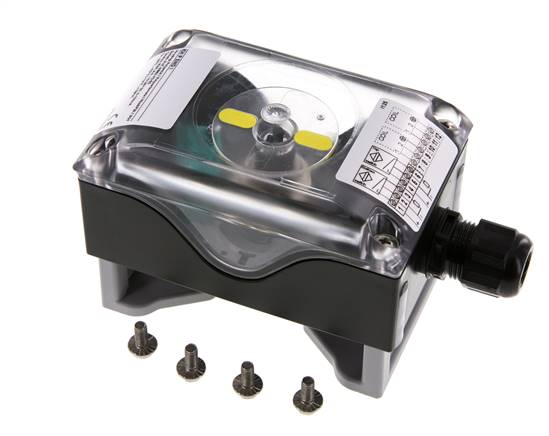

Signalbox Classic, inductive sensor
{{ $t('shop.all.artikelnummer') }}:
KH P END I
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: PA6, cover: Polycarbonate, selector shaft: PA6, seals: EPDM and NBR, assembly bridge: PA6, screws: 1.4301
Temperature range:
-20°C up to max. +80°C (KH P END P: -10°C up to max. +60°C)
Protection class:
IP 67 (KH P END P: IP 65)
Connection dimensions:
Fits hole patterns 50 x 25, 80 x 30 and 130 x 30, shaft height variably adjustable between 20 and 30 mm, fits all common drives but not PDD 050 & PDE 050.
Warning:
For assembly on actuators of size 1 in connection with Namur valve, it may be necessary to assemble a spacer plate (DR NAMUR DIS 6) between the valve and the actuator.
Housing: PA6, cover: Polycarbonate, selector shaft: PA6, seals: EPDM and NBR, assembly bridge: PA6, screws: 1.4301
Temperature range:
-20°C up to max. +80°C (KH P END P: -10°C up to max. +60°C)
Protection class:
IP 67 (KH P END P: IP 65)
Connection dimensions:
Fits hole patterns 50 x 25, 80 x 30 and 130 x 30, shaft height variably adjustable between 20 and 30 mm, fits all common drives but not PDD 050 & PDE 050.
Warning:
For assembly on actuators of size 1 in connection with Namur valve, it may be necessary to assemble a spacer plate (DR NAMUR DIS 6) between the valve and the actuator.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Switch type | inductive sensor |
| Switch capacity | 10 - 30 V (DC) / 100 mA |
| Switch function | 2x NO contact (PNP) |
| Temperature range [°C] | -20 to +80 |
| IP protection class | IP 67 |
{{ $t('shop.display.artikel.info') }} KHPENDI
| {{ $t('shop.all.gewicht') }} | 290 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571427542 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 544) atlas9_seiten/544.pdf
Documentation doku/khpend.pdf
Declaration of Conformity konf_erkl/konformitaetserklaerung_khpendi_khpendm_khpendp_la.pdf
3D CAD file (volume model) protected/cad/3d/72530/khpendi19782.stp
Documentation doku/khpend.pdf
Declaration of Conformity konf_erkl/konformitaetserklaerung_khpendi_khpendm_khpendp_la.pdf
3D CAD file (volume model) protected/cad/3d/72530/khpendi19782.stp
