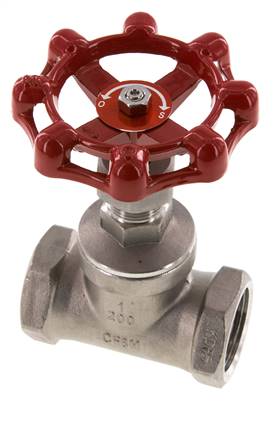

Socket shut-off valve, stainlesssteel, G 1", PN 16, Eco-Line
Item number:
MUA 10 ES E
Item description
Materials:
Body: 1.4408, spindle seal: PTFE, sealing seat: metallic sealing, handwheel: aluminium
Temperature range:
-20 to +200 °C
Media:
Liquids, gases, air, heating and hydraulic oils, fuels and water, chemicals
Optional:
Certificate 3.1
Body: 1.4408, spindle seal: PTFE, sealing seat: metallic sealing, handwheel: aluminium
Temperature range:
-20 to +200 °C
Media:
Liquids, gases, air, heating and hydraulic oils, fuels and water, chemicals
Optional:
Certificate 3.1
Properties
| Version | Standard |
| G | G 1" |
| DN [mm] | 23 |
| L [mm] | 76 |
| PN [bar] | 0 - 16 |
| H [mm] | 121 |
| R [mm] | 80 |
| replacement handwheel | MUA 10 ES E RAD |
Further information on MUA10ESE
| Weight | 650 g / pcs |
| GTIN | 4050571507848 |
| Tariff No. | 84818081 |
| RoHS compliant | Yes |
Documents
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products and goods are generally intended for industrial and commercial use.
