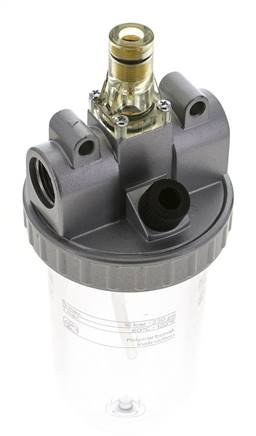

STANDARD lubricator, G 1/2", Standard 3, Plastic container
Item number:
DO 33
Item description
Materials:
Body: die-cast zinc Z410, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
0 - 16 bar (with metal bowl 0 - 25 bar, model series 8: 0 - 20 bar)
Oil metering at 500 l/min:
0,5 - 1 drops/min
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•can be filled with oil while under pressure
Optional:
Version with protective cage -S, Version with metal bowl* (0 - 25 bar model series 8: 0 - 20 bar)-M
Body: die-cast zinc Z410, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
0 - 16 bar (with metal bowl 0 - 25 bar, model series 8: 0 - 20 bar)
Oil metering at 500 l/min:
0,5 - 1 drops/min
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•can be filled with oil while under pressure
Optional:
Version with protective cage -S, Version with metal bowl* (0 - 25 bar model series 8: 0 - 20 bar)-M
Properties
| Model series | Standard 3 |
| Thread | G 1/2" |
| flow [l/min] | 50 - 4000 |
| Container design | Plastic container |
| Mounting brackets | ZW 30 |
| input pressure [bar] | 0 - 16 |
| Oil supply [cm³] | 135 |
| Reaction limit (6 bar) [l/min] | 50 |
| H [mm] | 203 |
| H1 [mm] | 148 |
| L [mm] | 79 |
Further information on DO33
| Weight | 850 g / pcs |
| GTIN | 4050571264147 |
| Customs duty number | 84248970 |
| RoHS compliant | Yes |
Documents
*metal / glass combination drip cap
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
