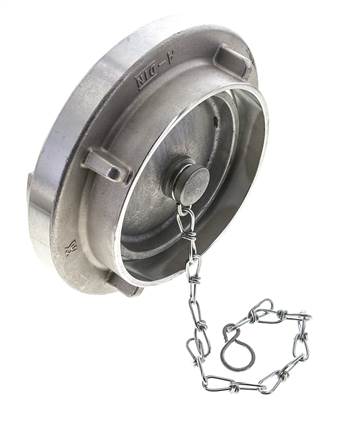

Storz blind coupling 110-A (133mm), Aluminium (forged)
{{ $t('shop.all.artikelnummer') }}:
STKV 133 A
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: NBR (stainless steel: FKM)
Temperature range:
-40°C to max. +110°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
max. 16 bar
Operating range:
Industry, fire brigade, refinery, agriculture, construction industry, maritime, military and catastrophe protection
Dimensions for determining the size of Storz couplings DIN sizes
lug distance 31 mm = Storz size 25-D, lug distance 66 mm = Storz size 52-C, lug distance 89 mm = Storz size 75-B, lug distance 133 mm = Storz size 110-A
Advantages:
•simple assignment of hose end and connection,
•fast connection and disconnection through a 120°-rotation,
•All couplings with the same lug distance are compatible with one another. The rule that applies is: same lug distance, same nominal size,
•large range of applications through the use of application-specific hoses,
•Aluminium forged - no danger of breakage, such as exists with cast couplings of aluminium,
•Brass - body is made of DVGW/KTW-compliant alloy.
Optional:
Can be locked -KEY (available for the types STKV 66 A, STKV 89 A, STKV 133A)
Seal: NBR (stainless steel: FKM)
Temperature range:
-40°C to max. +110°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
max. 16 bar
Operating range:
Industry, fire brigade, refinery, agriculture, construction industry, maritime, military and catastrophe protection
Dimensions for determining the size of Storz couplings DIN sizes
lug distance 31 mm = Storz size 25-D, lug distance 66 mm = Storz size 52-C, lug distance 89 mm = Storz size 75-B, lug distance 133 mm = Storz size 110-A
Advantages:
•simple assignment of hose end and connection,
•fast connection and disconnection through a 120°-rotation,
•All couplings with the same lug distance are compatible with one another. The rule that applies is: same lug distance, same nominal size,
•large range of applications through the use of application-specific hoses,
•Aluminium forged - no danger of breakage, such as exists with cast couplings of aluminium,
•Brass - body is made of DVGW/KTW-compliant alloy.
Optional:
Can be locked -KEY (available for the types STKV 66 A, STKV 89 A, STKV 133A)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Aluminium (forged) |
| Storz size | 110-A |
| Version | Standard |
| Lug distance [mm] | 133 |
| Temperature range [°C] | -40 to +110 |
| Standard | DIN 14313 |
{{ $t('shop.display.artikel.info') }} STKV133A
| {{ $t('shop.all.gewicht') }} | 1,3 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571159474 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 76169990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 346) atlas9_seiten/346.pdf
3D CAD file (volume model) protected/cad/3d/72480/stkv133a42534.stp
3D CAD file (volume model) protected/cad/3d/72480/stkv133a42534.stp
