Item description
Materials:

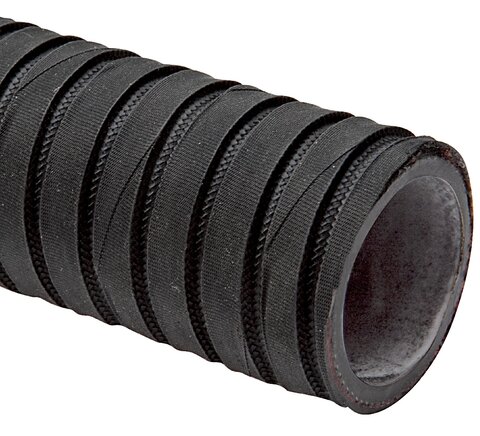

Inner core: synthetic rubber, black, smooth, oil resistant, pressure carrier: high toughness synthetic cord fabric and steel spiral, outer cover: synthetic rubber, fabric patterned, with angular grooving, weather and UV resistant.
Temperature range:
-40 to +100 °C
Operating pressure:
-0,9 to 10 bar (bursting pressure: 30 bar)
Operating range:
Spiral suction and pressure hose for oil with max. 40% aromatic content in hydraulic systems, water, water-glycol emulsion, water-oil emulsion. Temporary for polyglycol based oil rapeseed oil, bio oil and diesel (up to max. +40°C). Not suitable for ester-based oils (for example, special oils for refrigerators, compressors).
Advantages:
•low bend radius and high flexibility thanks to the ribbed outer cover.
Inner core: synthetic rubber, black, smooth, oil resistant, pressure carrier: high toughness synthetic cord fabric and steel spiral, outer cover: synthetic rubber, fabric patterned, with angular grooving, weather and UV resistant.
Temperature range:
-40 to +100 °C
Operating pressure:
-0,9 to 10 bar (bursting pressure: 30 bar)
Operating range:
Spiral suction and pressure hose for oil with max. 40% aromatic content in hydraulic systems, water, water-glycol emulsion, water-oil emulsion. Temporary for polyglycol based oil rapeseed oil, bio oil and diesel (up to max. +40°C). Not suitable for ester-based oils (for example, special oils for refrigerators, compressors).
Advantages:
•low bend radius and high flexibility thanks to the ribbed outer cover.
Properties
| Hose diameter (inner) [mm] | 38 (1-1/2") |
| Hose diameter (outer) [mm] | 48 |
| Min. bend radius [mm] | 130 |
| Roll length [MTR] | 30 |
Further information on R4-38
| Weight | 1 kg / m |
| GTIN | 4050571569228 |
| Packing unit | 60 m |
| Maximum length by parcel service | 20 m |
| Customs duty number | 40094100 |
Documents
- Catalogue page Atlas 9 (Page 403) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
