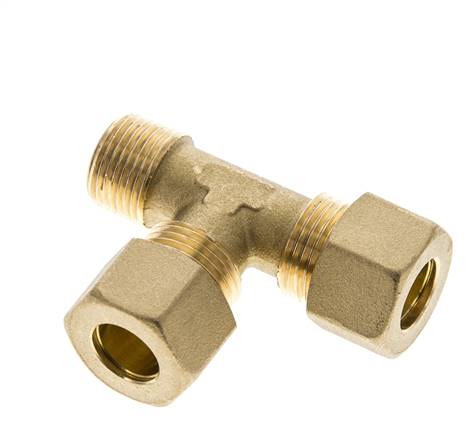

T compression ring fitting R 3/8"-12 (M18x1,5)mm, brass
Item number:
KLE 3812 MS
Item description
Temperature range:
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
Properties
| Pipe diameter (outer) [mm] | 12 (M18x1,5) |
| Screw-in thread | R 3/8" |
| Operating pressure with hard copper tube [bar] | 75 |
| Temperature range [°C] | -60 to +300 |
Further information on KLE3812MS
| Weight | 110 g / pcs |
| GTIN | 4050571433963 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 139) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
