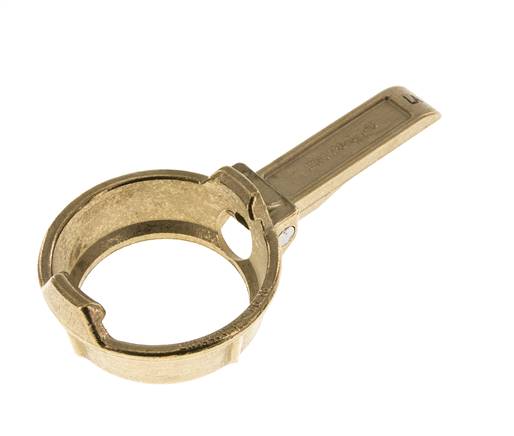

Tanker lorry coupling clamping ring lever for MK 50 MS, Brass
Item number:
MKSH 50 MS
Item description
Materials:
Body: 1.4408, brass or aluminium, coupling soft seal: CSM (Hypalon) (type aluminium: NBR), thread seal: PTFE (brass type: Polyurethane), chain: 1.4401 (aluminium type: 1.4301)
Temperature range:
-20 to +80 °C
Operating pressure:
max. 16 bar
Body: 1.4408, brass or aluminium, coupling soft seal: CSM (Hypalon) (type aluminium: NBR), thread seal: PTFE (brass type: Polyurethane), chain: 1.4401 (aluminium type: 1.4301)
Temperature range:
-20 to +80 °C
Operating pressure:
max. 16 bar
Properties
| Material | Brass |
| suitable for | MK 50 MS |
Further information on MKSH50MS
| Weight | 440 g / pcs |
| GTIN | 4050571156947 |
| Tariff No. | 74122000 |
| RoHS compliant | Yes |
Documents
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products and goods are generally intended for industrial and commercial use.
