Item description
Suitable:

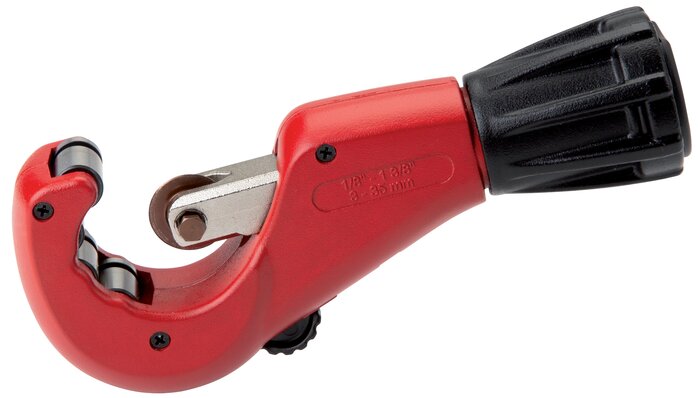

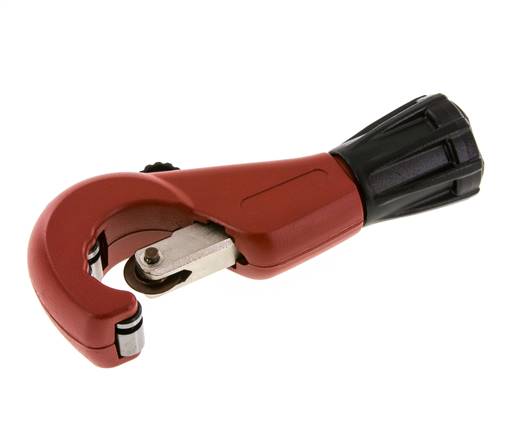

For cutting of aluminium, copper, steel and stainless steel pipes, as well as plastic and composite pipes. Pipe cutter with 4 guide rollers for optimum holding of the pipes, incl. replacement cutting wheel in the handle. Do not use to cut tubes for cutting ring fittings!
Note:
Type Ø 6 - 76 mm only has a practical quick adjustment. The pipe cutters are colour coded: red - for copper, brass & aluminium pipes, grey - for steel & stainless steel pipe, black - for plastic & composite pipes
For cutting of aluminium, copper, steel and stainless steel pipes, as well as plastic and composite pipes. Pipe cutter with 4 guide rollers for optimum holding of the pipes, incl. replacement cutting wheel in the handle. Do not use to cut tubes for cutting ring fittings!
Note:
Type Ø 6 - 76 mm only has a practical quick adjustment. The pipe cutters are colour coded: red - for copper, brass & aluminium pipes, grey - for steel & stainless steel pipe, black - for plastic & composite pipes
Properties
| Version | Tube cutter |
| for pipe diameter (outer) [mm] | 3 - 35 |
| for material | Copper, brass / aluminium |
| max. wall thickness [mm] | 2,0 |
| Cutting wheel dimensions (diameter x width) [mm] | 19 x 6,2 |
| Replacement cutting wheel | RAS KL |
Further information on RAS35
| Weight | 370 g / pcs |
| GTIN | 4050571890278 |
| Customs duty number | 82034000 |
Documents
- Catalogue page Atlas 9 (Page 959) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
