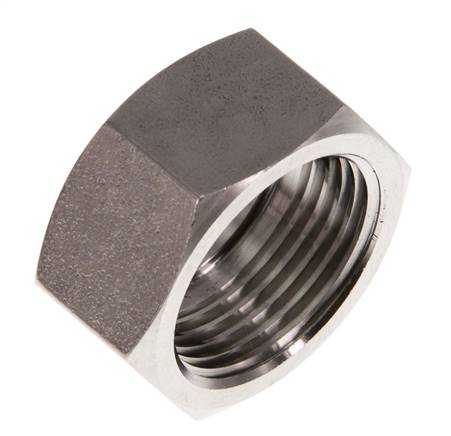

Item description
Warning:
Version of the sleeves and union nuts varies depending on the manufacturer and material. Mixing of the individual parts with other manufacturers or materials is not recommended.
Version of the sleeves and union nuts varies depending on the manufacturer and material. Mixing of the individual parts with other manufacturers or materials is not recommended.
Properties
| Material | 1.4571 |
| Thread (G) | G 3/4" |
| for hose screw connection [mm] | 13 / 19 |
| L [mm] | 16 |
| SW [mm] | 32 |
Further information on UM34ES
| Weight | 49 g / pcs |
| GTIN | 4050571712808 |
| Customs duty number | 73072910 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 127) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*also in L = 16 mm available, Product numbers: UM 12 MS K and UM 12 ES K
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
