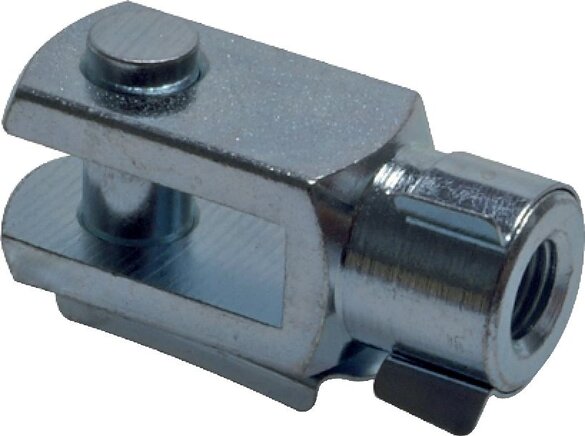

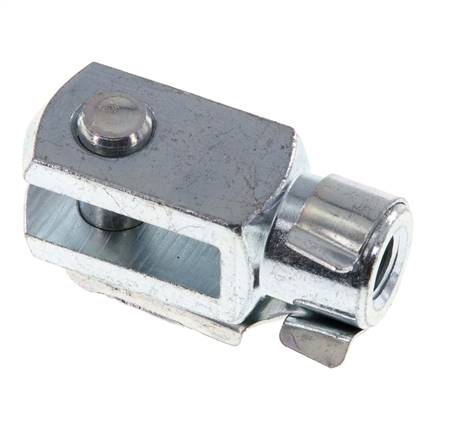

Item description
Optional:
Material 1.4571 -ES 4A
Material 1.4571 -ES 4A
Properties
| Material | Zinc plated steel |
| for piston rod thread A | M 8 |
| B [mm] | 16 |
| C [mm] | 32 |
| D [mm] | 23 |
| E [mm] | 8 |
| F [mm] | 42 |
| G [mm] | 16 |
| H [mm] | 8 |
Further information on GAK20
| Weight | 47 g / pcs |
| GTIN | 4050571314347 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 896) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)

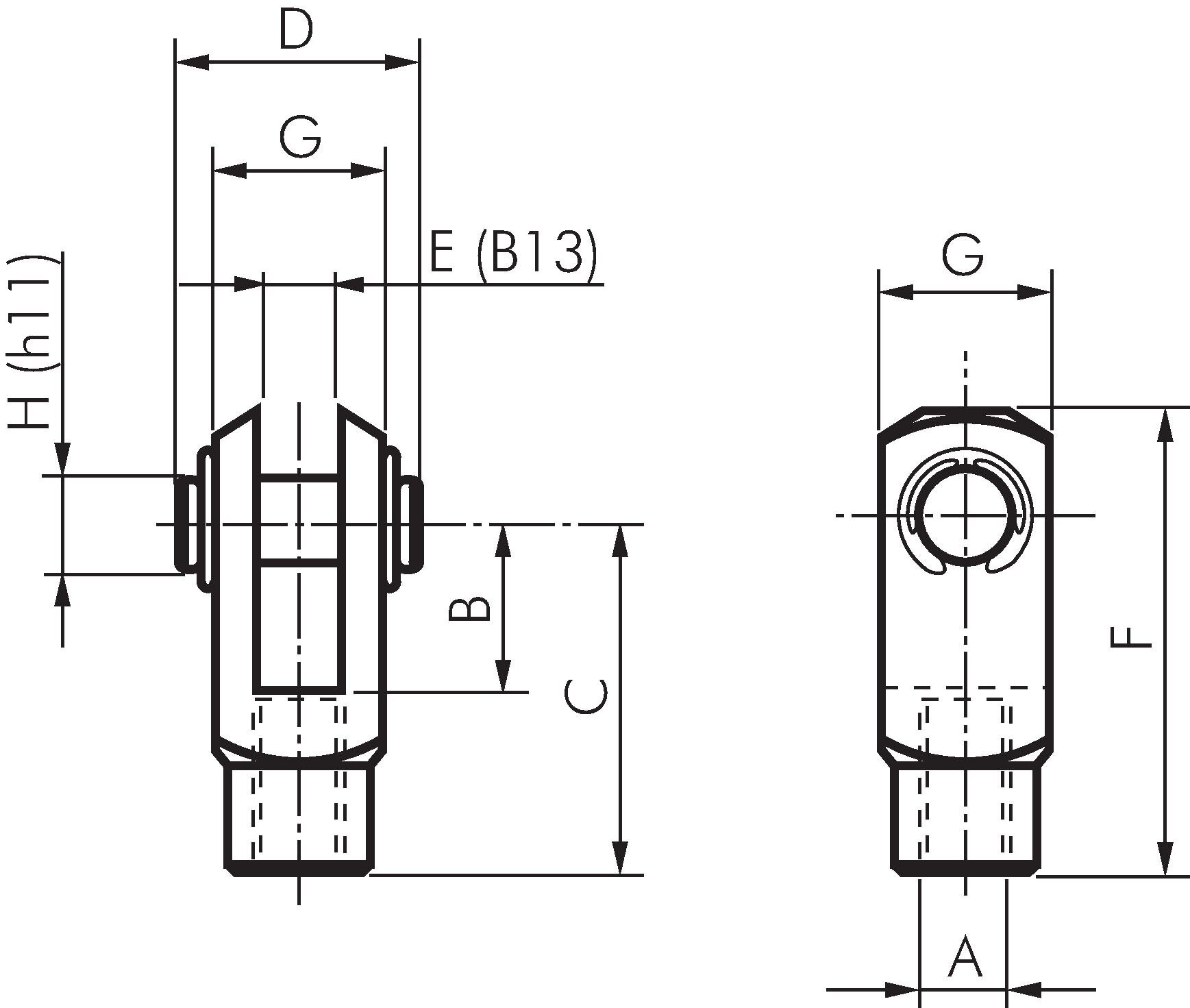

*Stainless steel type can optically differ from the drawing, **following DIN / ISO
