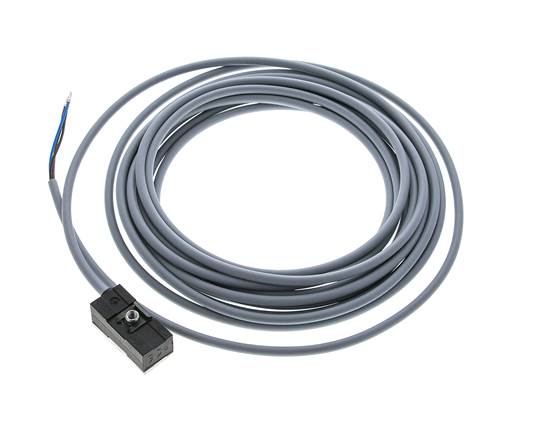

SMEO-1-LED-24-K5-B (151672) proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO003653
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | Block structure |
| Material information | Copper and PTFE-free |
| Measurement principle | Reed magnetic |
| ambient temperature [°C] | -20 to 70 |
| Control output | Bipolar contact |
| Switching element function | NO contact |
| Reproducibility of the switching value | ± 0,1 mm |
| Switch on time [ms] | <= 0,5 ms |
| Max. output current [mA] | 1.000 |
| Max. switching capacity AC [VA] | 27 |
| Max. switching capacity DC [W] | 27 |
| Short circuit resistance | no |
| Overload resistant | Not available |
| Operating voltage range DC [V] | 12 to 27 |
| Reverse polarity protection | no |
| Electrical connection |
3-wire, cable |
| Fastening type | With Accessories |
| installation position | arbitrary |
| Product weight [g] | 130 |
| Housing material | Zinc pressure cast |
| Ambient temperature for moving cable placements [°C] | -5 to 70 |
| Protection category | IP67 |
| Permission | RCM mark |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Operating voltage range AC [V] | 12 to 27 |
| Switching status indicator | LED yellow |
| Connection outlet direction | along |
| Cable length [MTR] | 5,0 |
| Cable sleeve material | TPE-U(PUR) |
{{ $t('shop.display.artikel.info') }} OT-FESTO003653
| {{ $t('shop.all.gewicht') }} | 130 g / Pièce |
| {{ $t('shop.all.gtin') }} | 4052568069995 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Aperçu avant impression)
Groupe fiche technique: SMX (francais) festo/gruppendatenblaetter/smx_fr.pdf
Documentation (francais) festo/datenblaetter/151672_fr.pdf
Documentation (francais) festo/datenblaetter/151672_fr.pdf
