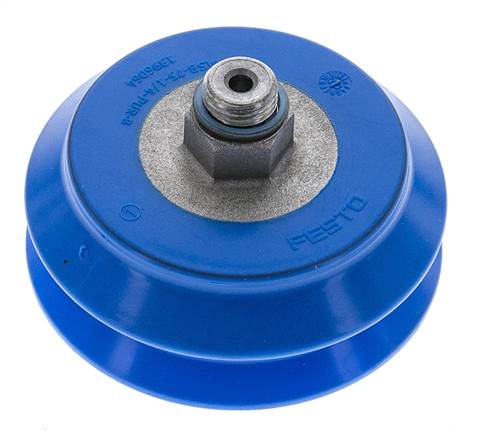

VASB-75-1/4-PUR-B (1396064) suction cup

OT-FESTO036445

Exemplaire exposé: VASB-75-1/4-PUR-B
32,44€ TVA incluse
Pièce
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Height balance suction cup [mm] 15,5
Nominal width [mm] 4,0
Suction diameter [mm] 75
Suction volumes [cm³] 65,500
Connection position top
installation position arbitrary
Suction shape Round folding bellows1.5 times
Operating pressure [bar] -0,95
Nominal operating pressure [bar] -0,7
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] -20 to 60
Holding force for nominal operating pressure [N] 250,00
Product weight [g] 90
Fastening type Via vacuum connection
vacuum connection G1/4
colour blue
Shore hardness 60 ± 5
Stud material Zinc pressure cast
Material information RoHs compliant
Suction cups material PUR
Effective suction diameter [mm] 67,4
OT-FESTO036445
{{ $t('shop.all.gewicht') }} 90 g / Pièce
{{ $t('shop.all.gtin') }} 4052568062033
{{ $t('shop.display.artikel.zollwarennummer') }} 84799070
{{ $t('shop.all.hersteller') }} Festo
{{ $t('shop.all.dokumente') }}
    Documentation (francais) festo/datenblaetter/1396064_fr.pdf
    Groupe fiche technique: VAS (english) festo/gruppendatenblaetter/vas_en.pdf
    Groupe fiche technique: VAS (francais) festo/gruppendatenblaetter/vas_fr.pdf
