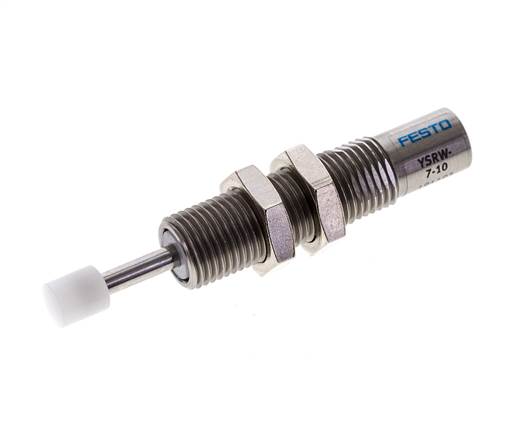

YSRW-7-10 (191193) shock absorber

OT-FESTO007814

Exemplaire exposé: YSRW-7-10 (191193)   &   YSRW-8-14 (191194)   &   YSRW-12-20 (191196)  & ...
100,82€ TVA incluse
Pièce
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
size 7
Dampening self-adjusting,
Soft characteristic curve
installation position arbitrary
Position detection without
Max. impact speed [m/s] 3
Principle of operation Pressing,
single action
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] -10 to 80
Fastening type With locking nut
Material information Copper and PTFE-free,
RoHs compliant
Piston rod material High-alloyed steel
Stroke [mm] 10
Rest time short [s] 0,2
Rest time long [s] 1
Dampening length [mm] 10
Max. impact force [N] 300
Max. energy consumption per stroke [J] 2,5
Max. energy consumption per hour [J] 15.000
Max. residual energy [J] 0,01
Reset force [N] 1,2
Product weight [g] 18
Seals material NBR
Housing material High-alloyed steel
OT-FESTO007814
{{ $t('shop.all.gewicht') }} 18 g / Pièce
{{ $t('shop.all.gtin') }} 4052568150488
{{ $t('shop.display.artikel.zollwarennummer') }} 84879059
{{ $t('shop.all.hersteller') }} Festo
{{ $t('shop.all.dokumente') }}
    Groupe fiche technique: SHOCK-ABSORBER (francais) festo/gruppendatenblaetter/shock-absorber_fr.pdf
    Documentation (francais) festo/datenblaetter/191193_fr.pdf
  • {{ $t('shop.display.datenblatt.titel') }} (Aperçu avant impression)


{{ $t('shop.all.unverbindliche_richtwerte') }}
