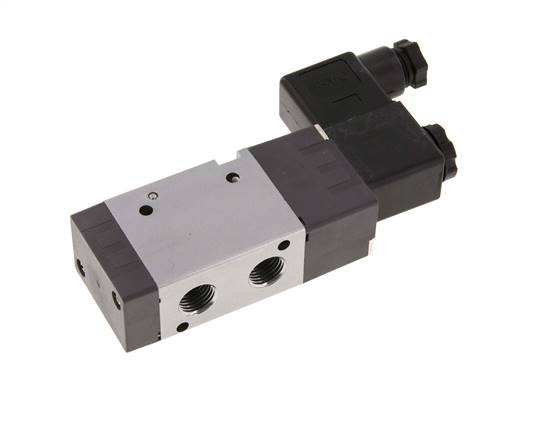

3/2-way solenoid valve, G 1/4", Položaj ponastavitve vzmeti (NC), 24 V AC
Št. Izdelka:
RV 3231-08-24VAC
Opis artikla
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 do +60 °C
Operating pressure:
1,5 do 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Service life:
min. 40 million switching cycles
Structural shape solenoid coil:
T1 (plug size 1)
Information:
The coil and plug are enclosed as loose parts.
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 do +60 °C
Operating pressure:
1,5 do 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Service life:
min. 40 million switching cycles
Structural shape solenoid coil:
T1 (plug size 1)
Information:
The coil and plug are enclosed as loose parts.
Lastnosti
| Krmilna napetost | 24 V AC |
| Funkcija | Položaj ponastavitve vzmeti (NC)* |
| Navoj G1 (2x) | G 1/4" |
| Navoj odpadni zrak G1(1x) | G 1/4" |
| Nazivna širina | 5,6 |
| Pretok | 1150 |
| Poraba energije (AC) | 4 |
| Nadomestna elektromagnetna tuljava | MAG T1 24VAC |
| A | 124,3 |
| B | 40 |
| C | 27 |
| D | 10,5 |
| E | 21,6 |
| F | 30 |
| H1 | 4,3 |
| H2 | 4,3 |
| J | 20 |
| K | 19,1 |
| L | 35 |
| M | 24,6 |
| N | 24 |
| O | 36,6 |
| P | 0 |
| U | 70 |
| V | 40,5 |
| W | 0 |
Dodatne informacije o RV3231-08-24VAC
| Teža | 280 g / Kos |
| GTIN | 4050571714970 |
| Tariff No. | 84812090 |
| Proizvajalec | EMC |
Dokumenti
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*Pneumatic spring
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
