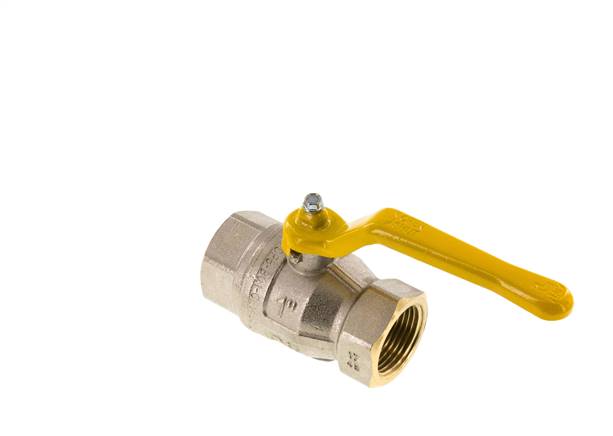

Opis artikla
Materials:
Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / NBR
Temperature range:
-20 do +150 °C, gas: -20°C to max. +60°C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar), gases in accordance with DVGW worksheet (e.g. natural gas, city gas, liquid gas up to 5 bar)
Advantages:
•Length according to DIN 3202-M3,
•By purchasing the optional combi handles, you can construct various handle variations: -Standard handle in red, yellow, blue and black, -Butterfly handle in red, yellow, blue, black and green, -Flat-steel handle in red, yellow and green (optional: lockable***), -long handle in red
Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / NBR
Temperature range:
-20 do +150 °C, gas: -20°C to max. +60°C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar), gases in accordance with DVGW worksheet (e.g. natural gas, city gas, liquid gas up to 5 bar)
Advantages:
•Length according to DIN 3202-M3,
•By purchasing the optional combi handles, you can construct various handle variations: -Standard handle in red, yellow, blue and black, -Butterfly handle in red, yellow, blue, black and green, -Flat-steel handle in red, yellow and green (optional: lockable***), -long handle in red
Lastnosti
| Izvedba | Standard |
| Navoj G | Rp 1" |
| DN | 25 |
| L | 90 |
| PN* | -0,9 do 40 |
| H | 61 |
| R | 113 |

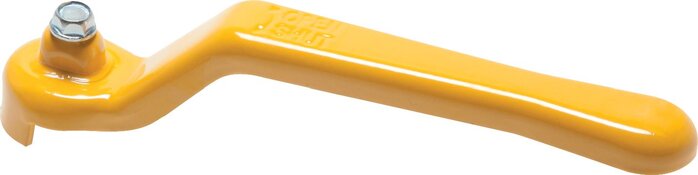

| Nadomestna ročka standard | KOMBI 3 S GELB |
| Tročaj | KOMBI 3 K GELB |
| Ploščato jeklo ročka | KOMBI 3 F GELB |
Dodatne informacije o KH10DVGW
| Teža | 650 g / Kos |
| GTIN | 4050571405274 |
| Številka carinskega blaga | 84818081 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 493) (PDF)
- Dokumentacijo: DVGW Gas and Pressure Equipment Directive statement (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- 3D CAD file (surface model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*For gas up to PN 5 bar / MOP 5, **No DIN length, ***Not for combi handle size 3
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
