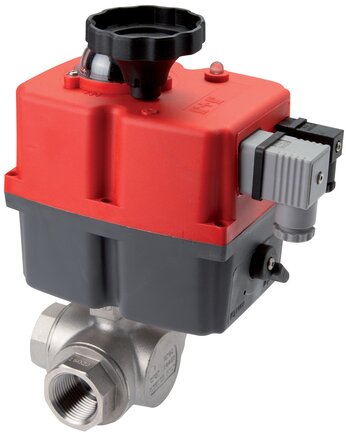

Electrical. 3-way ball valve (L), G 2", 24 do 240 V (AC/DC)
Št. Izdelka:
KH 3/20 L ELI
Opis artikla
Advantages:
•2 additional limit switches,
•torque cut-off,
•variable voltage (DC or AC),
•manual emergency operation,
•integrated heating in actuator housing
Ball valve
Materials:
Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / NBR
Temperature range:
-10 do +100 °C
Properties:
Pressure inlet is possible from all the three sides
Media:
Water, oil, compressed air, fuels, heating oil, solvents, colour, paint, weak acids and alkalis
Rotary actuator
Description:
Electrical rotary actuator with optical position indicator, manual emergency operation and switch room heating Two additional limit switches are installed for further control requirements. An electronic torque monitoring unit prevents damage in the event of overload. The manual emergency operation can be done without dismantling the external cladding. Do not use upside down!
Materials:
Body: PA 6
Temperature range:
-20 do +70 °C
Voltage:
24 - 240 V AC/DC, (drives can be operated with direct or alternating voltage)
Protection class:
IP 67
Power-on time:
75%
Optional:
Positioning time 140 sec. -140, "Battery Safety Return" for emergency closing NC (default configuration) or emergency opening NO (conversion with a jumper) when there is a power failure -BSR, Positioning system 0 - 10 V or 4 - 20 mA (conversion with a jumper), precision: 3%, linearity: 2%, hysteresis: 3%, switch position NC or NO (conversion with a jumper) -DPS
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
•2 additional limit switches,
•torque cut-off,
•variable voltage (DC or AC),
•manual emergency operation,
•integrated heating in actuator housing
Ball valve
Materials:
Body: nickel-plated brass, ball: hard chrome-plated brass, seals: PTFE / NBR
Temperature range:
-10 do +100 °C
Properties:
Pressure inlet is possible from all the three sides
Media:
Water, oil, compressed air, fuels, heating oil, solvents, colour, paint, weak acids and alkalis
Rotary actuator
Description:
Electrical rotary actuator with optical position indicator, manual emergency operation and switch room heating Two additional limit switches are installed for further control requirements. An electronic torque monitoring unit prevents damage in the event of overload. The manual emergency operation can be done without dismantling the external cladding. Do not use upside down!
Materials:
Body: PA 6
Temperature range:
-20 do +70 °C
Voltage:
24 - 240 V AC/DC, (drives can be operated with direct or alternating voltage)
Protection class:
IP 67
Power-on time:
75%
Optional:
Positioning time 140 sec. -140, "Battery Safety Return" for emergency closing NC (default configuration) or emergency opening NO (conversion with a jumper) when there is a power failure -BSR, Positioning system 0 - 10 V or 4 - 20 mA (conversion with a jumper), precision: 3%, linearity: 2%, hysteresis: 3%, switch position NC or NO (conversion with a jumper) -DPS
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
Lastnosti
| Izvedba | Standard |
| Napetost | 24 do 240 V (AC/DC) |
| Luknja | L |
| Navoj | G 2" |
| DN | 40 |
| Vgradna dolžina krogelna pipa | 165 |
| PN | 0 - 40 |
| Nastavljalni čas | 9 |
| Nadomestni pogoni | ELU 230-3 |
Dodatne informacije o KH3/20LELI
| Teža | 8 kg / Kos |
| GTIN | 4050571416560 |
| Tariff No. | 84818081 |
| Skladno z RoHS | Da |
| Proizvajalec | Köly Deutschland |
YouTube videi:
Dokumenti
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
