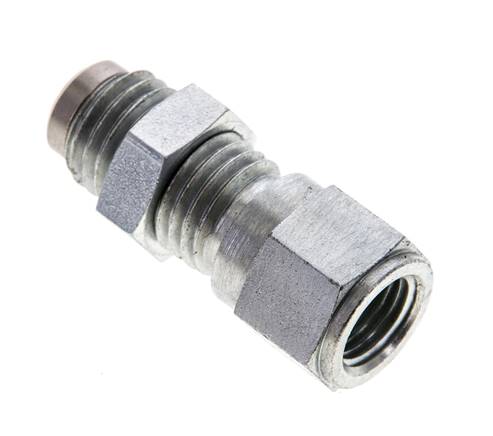

Pressure gauge connection M 16x2 (AG) - NPT 1/4", Jeklo, pocinkano
Št. Izdelka:
ME MAAG 14 NPT
Opis artikla
Materials:
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Lastnosti
| Material | Jeklo, pocinkano |
| Izvedba | za privijanje v merilno cev |
| Notranji navoj G1 (manometer) | NPT 1/4" |
| Navoj G2 (merilni priključki) | M 16x2 (AG) |
| Pregradni vijačni priključek | M 16 |
| Emax | 12 |
| Obratovalni tlak | 630 |
| Temperaturno območje | od -20 do +100 |
Dodatne informacije o MEMAAG14NPT
| Teža | 65 g / Kos |
| GTIN | 4050571485955 |
| Tariff No. | 84812010 |
| Skladno z RoHS | Da |
Dokumenti
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
