Opis artikla
Version:
Self-relieving pressure regulator
Materials:
Body: brass (DR 8740 and DR 8840: gravity die cast aluminium), diaphragms and seals: NBR
Temperature range:
-10 do +90 °C
Input pressure:
max. 40 bar
Pressure gauge connection:
G 1/4"
Switch panel thread:
DR 1140: M 20x1,5, DR 3340: M 28x1,5
Media:
Oiled and unoiled compressed air, neutral gasses
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Optional:
Other regulation ranges: 0.5-3 bar -3**, 0.5-6 bar -6, 0.5-16 bar -16, 0.5-25 bar -25, lockable (DR 8740 and DR 8840) -K
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Self-relieving pressure regulator
Materials:
Body: brass (DR 8740 and DR 8840: gravity die cast aluminium), diaphragms and seals: NBR
Temperature range:
-10 do +90 °C
Input pressure:
max. 40 bar
Pressure gauge connection:
G 1/4"
Switch panel thread:
DR 1140: M 20x1,5, DR 3340: M 28x1,5
Media:
Oiled and unoiled compressed air, neutral gasses
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Optional:
Other regulation ranges: 0.5-3 bar -3**, 0.5-6 bar -6, 0.5-16 bar -16, 0.5-25 bar -25, lockable (DR 8740 and DR 8840) -K
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Lastnosti

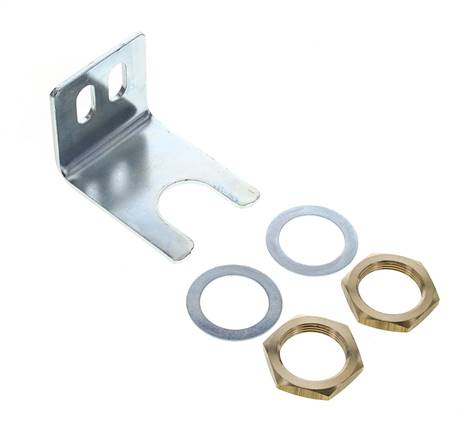

| Izvedba | Pritrdilni nosilec |
Dodatne informacije o BW3040
| Teža | 190 g / Kos |
| GTIN | 4050571854461 |
| Številka carinskega blaga | 84819000 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 614) (PDF)
- Dokumentacijo (PDF)
- Dokumentacijo: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*Input pressure gauge 0 - 60 bar, **not available for types DR 8740 and DR 8840, ***measured at P1 = 8 bar, P2 = 6 bar, Delta p = 1 bar
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
