Opis artikla

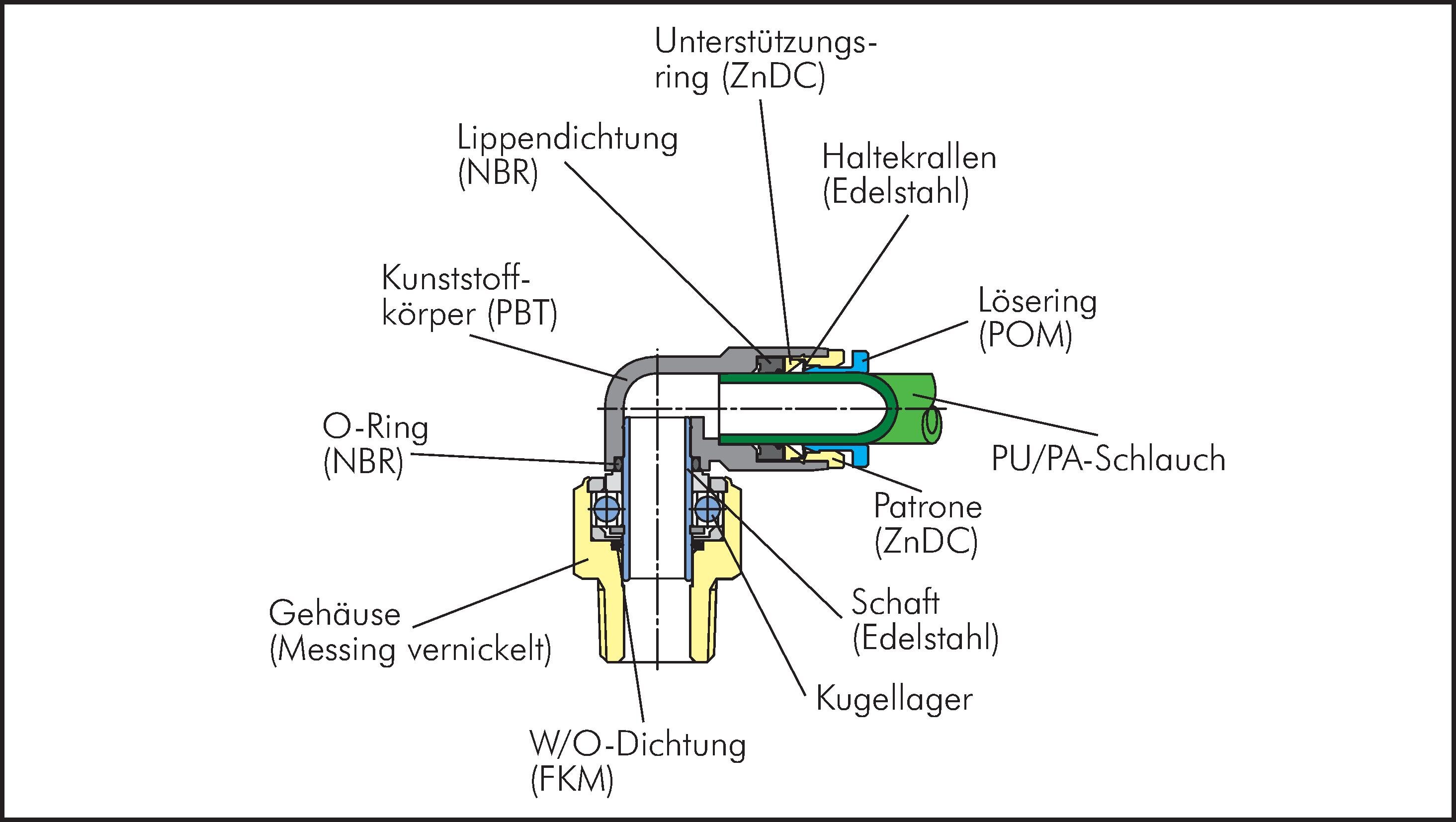

Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claw: stainless steel, cartridge: nickel-plated ZnDC, sleeve: PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 do +60 °C
Operating pressure:
-0,95 do 10 bar
Functional principle:
The swivel joints (with a ball bearing) prevent the hose from getting twisted during swiveling movements.
Media:
Compressed air, neutral gases
Advantages:
•Reasonable price,
•using holding pliers in the case of frequent rotations effectively prevents the hose from being cut
Body: nickel-plated brass / PBT, seal: NBR, holding claw: stainless steel, cartridge: nickel-plated ZnDC, sleeve: PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 do +60 °C
Operating pressure:
-0,95 do 10 bar
Functional principle:
The swivel joints (with a ball bearing) prevent the hose from getting twisted during swiveling movements.
Media:
Compressed air, neutral gases
Advantages:
•Reasonable price,
•using holding pliers in the case of frequent rotations effectively prevents the hose from being cut

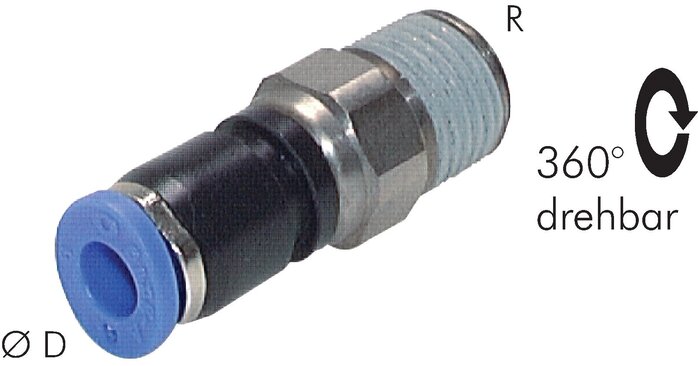

Lastnosti
| Umaks.* | 400 |
| R | R 3/8" |
| D | 8 |
Dodatne informacije o IQSR388
| Teža | 38 g / Kos |
| GTIN | 4050571384074 |
| Številka carinskega blaga | 74122000 |
| Skladno z RoHS | Da |
| Proizvajalec | Sang-A |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 66) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*depends on operating time
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
