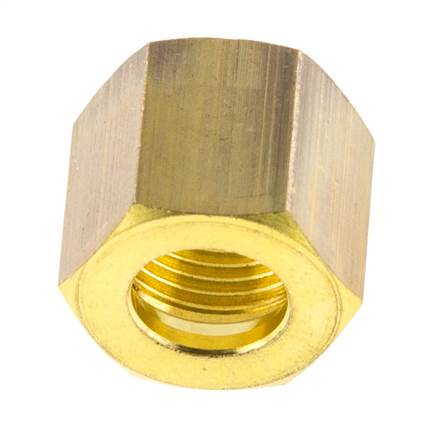

Union nut f. Compression ring screw connection 8 (M12x1)mm, brass
Št. Izdelka:
KM 8 MS
Opis artikla
Temperature range:
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
Lastnosti
| Premer trde cevi (zunaj) | 8 (M12x1) |
| Navoj | M 12x1 |
| Obratovalni tlak s trdo bakreno cevjo | 135 |
| Temperaturno območje | od -60 do +300 |
Dodatne informacije o KM8MS
| Teža | 8 g / Kos |
| GTIN | 4050571441494 |
| Številka carinskega blaga | 74122000 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 140) (PDF)
- Dokumentacijo (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
