Data sheet
Flange attachment f. 8 & 10mm ISO 6431 cylinder, Zinc plated steel
Item number:
BFL 8/10

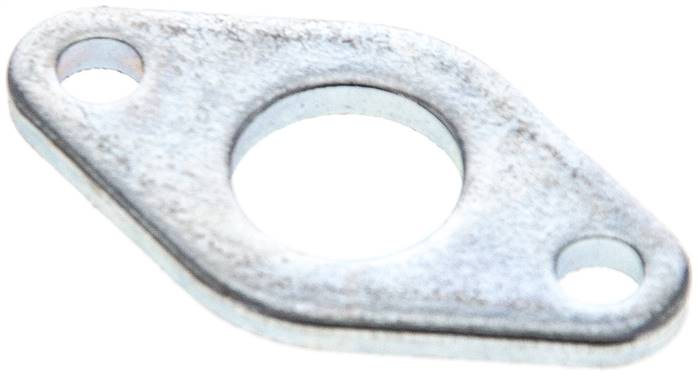

Example illustration
Item description
Scope of delivery:
1 unit Flange fastening
Properties
| Material | Zinc plated steel |
| for piston diameter [mm] | 8 & 10 |
| A [mm] | 12 |
| B [mm] | 3 |
| C [mm] | 30 |
| R [mm] | 11 |
| S [mm] | 4,5 |
Further information:
| Weight | 9,1 g / pcs |
| GTIN | 4050571223670 |
| Customs duty number | 84129080 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Drawing:
Tekening: Flensbevestiging (voren en achteren)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number BFL 8/10.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 29.03.2025
