Data sheet
Straight screw connection G 1/4"-10x8mm, Nickel-plated brass
Item number:
CK 148 MSV

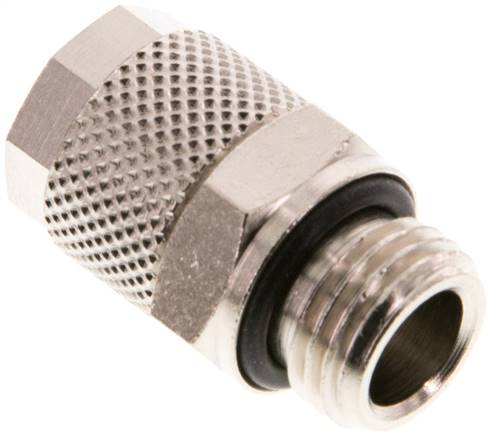

Example illustration
Item description
Type brass nickel-plated (NBR & FKM seal)
Operating pressure:
-0.95 to 20 bar
Temperature range:
-20°C up to max. +80°C, with FKM seal to max. +150°C
aluminium type
Operating pressure:
-0.99 to 15 bar
Temperature range:
-15°C to max. +70°C
Type plastic (POM)
Operating pressure:
-0.99 to 10 bar
Temperature range:
-10°C to max. +60°C
Properties
| Material | Nickel-plated brass |
| Seals | NBR |
| Screw-in thread | G 1/4" |
| Hose diameter (outer x inner) [mm] | 10x8 |
| Operating pressure [bar] | -0.95 to 20 |
| Temperature range [°C] | -20 to +80 |
Further information:
| Weight | 28 g / pcs |
| GTIN | 4050571233532 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number CK 148 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 31.03.2025
