Data sheet

Oval teats, 18 x 6mm, stroke 1mm, NBR (60A), Grey
Item number:
VS 18X6 O NBR

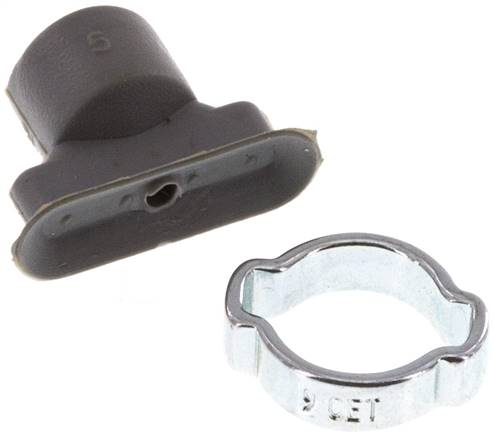

Example illustration
Item description
CR material:
Description: Chloroprene; temperature range: -40°C up to max. +110°C; wear resistant: fair; resistance to oil: good; Weather and ozone resistance: good; petrol resistance: not recommended; advantage weather resistant; Recommended for: Universal use
NBR material:
Description: Nitrile rubber; temperature range: -30°C up to max. +90°C; wear resistant: fair; resistance to oil: very good; Weather and ozone resistance: not recommended; petrol resistance: fair; Advantage: oil-resistant, water-resistant up to max. 70°C; recommendation for: Universal use
Material silicone:
Description: Silicone rubber; Temperature range: -40°C up to max. +200°C; wear resistant: not recommended; oil resistance: not recommended; Weather and ozone resistance: very good; petrol resistance: not recommended; advantage Temperature resistant, very flexible; Recommended for: Food, electronics
PUR material:
Description: Polyurethane; Temperature range: -20°C up to max. +80°C; wear resistant: good; oil resistance: very good; Weather and ozone resistance: fair; petrol resistance: good; advantage: long service life; recommended for: harsh operating conditions, automobile
NR material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage flexible, wear-resistant; recommended for: Wood, uneven surfaces
NRE material:
Description: Natural rubber; temperature range. -40°C up to max. +80°C; wear resistant: good; oil resistance: not recommended; Weather and ozone resistance: not recommended; petrol resistance: not recommended; advantage very flexible, wear-resistant; recommended for: Wood, uneven surfaces
SBR material:
Description: Styrene-butadiene rubber; temperature range: -30°C up to max. +80°C; wear resistant: very good; oil resistance: not recommended; Weather and ozone resistance: fair; petrol resistance: fair; Advantage: non-marking, very flexible, very abrasion resistant; recommended for: Wood, uneven surfaces
Scope of delivery:
1 pc Suction cup with ear clamp for attachment on bracket (bracket must be ordered separately)
Properties
Ma­te­r­ial NBR (60A)
A x B [mm] 18 x 6
Stroke [mm] 1
colour Grey
Con­nec­tion (fe­male thread) G 1/8"
Holder (fe­male thread) VSH H18 I
Con­nec­tion (male thread) G 1/8"
Holder (male thread) VSH H18
Con­nec­tion (male thread) M 5
Holder (male thread) VSH H50
h [mm] 12
H [mm] 22
H (G 1/8" MT or G 1/4" MT) [mm] 26
D1 [mm] 5
D2 [mm] 9
D3 [mm] 2,0
Tem­per­a­ture range [°C] -30 to +90
Bracket type H
Further information:
Weight 0,8 g / pcs
GTIN 4050571724443
Customs duty number 84879090
RoHS compliant Yes
Drawing:
Zeichnung: Sauger mit Halter
Zeichnung: Montagebeispiel mit Halter
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VS 18X6 O NBR.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 31.03.2025
