Data sheet
Flat-head screw DIN965 / ISO7046, M 3x20, Galvanised steel 4.8
Item number:
965-M3X20

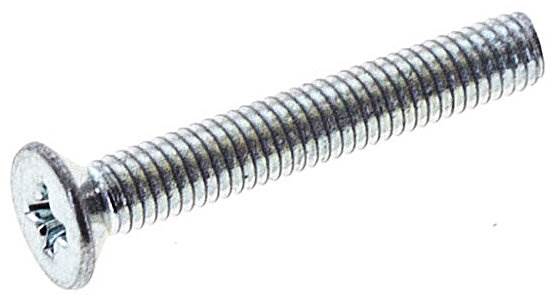

Example illustration
Properties
| Material | Galvanised steel 4.8 |
| D | M 3 |
| L [mm] | 20 |
| Dk [mm] | 5,6 |
| K [mm] | 1,65 |
| Cross recess | PH1 |
Further information:
| Weight | 1 g / pcs |
| GTIN | 4050571140946 |
| Customs duty number | 73181900 |
| RoHS compliant | Yes |
Drawing:
Zeichnung: Senkschraube mit Kreuzschlitz DIN 965 / ISO 7046
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 965-M3X20.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 26.03.2025
