Data sheet
Flexible polyamide tube, 6 x 4 mm, natural
Item number:
PAFL 6X4 NATUR-100

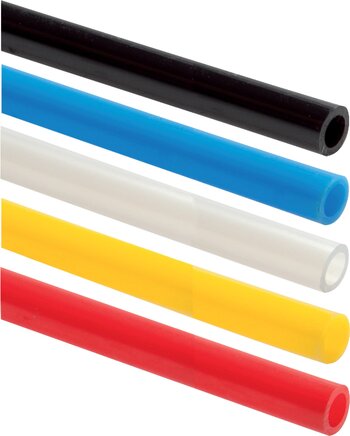

Example illustration
Item description
Properties:
Superflexible PA tubing made of elastomer without plasticiser are characterised by greater low-temperature elasticity. They offer a good to outstanding hot air and weather resistance.
Advantages:
•small bending radius due to special flexibility,
•high operating pressure,
•good mechanical resistance,
•good chemicals resilience,
•ideal for vacuum applications,
•colour black: UV-resistant,
•suitable for drag chain
•high operating pressure,
•good mechanical resistance,
•good chemicals resilience,
•ideal for vacuum applications,
•colour black: UV-resistant,
•suitable for drag chain
Temperature range:
-50 to +60 °C
Shore hardness:
55 D
Roller length meter goods
50 m
Reference values for the pressure utilisation under temperature loading:
to +20°C: 100%, +30°C: 76%, +40°C: 65%, +50°C: 56%, +60°C: 50%
Properties
| Version | 100 m roll |
| Hose diameter (outer x inner) [mm] | 6 x 4 |
| colour | natural |
| Operating pressure [bar] | 22 |
| Min. bend radius [mm] | 25 |
Further information:
| Weight | 1,5 kg / pcs |
| GTIN | 4050571542153 |
| Customs duty number | 39173200 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PAFL 6X4 NATUR-100.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 27.04.2025
