Pressure gauge connection M 16x2 (AG) - G 1/4", 1.4571
Item number:
ME MAAG 14 ES

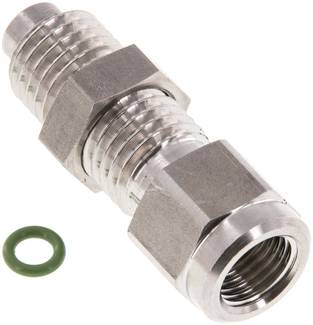

Example illustration
Item description
Materials:
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR
Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Properties
| Material | 1.4571 |
| Version | to screw into the measuring hose |
| Thread G1 (pressure gauge) | G 1/4" |
| Thread G2 (test couplings) | M 16x2 (Male thread) |
| Bulkhead thread | M 16 |
| Emax [mm] | 12 |
| Operating pressure [bar] | 630 |
| Temperature range [°C] | -20 to +200 |
Further information:
| Weight | 80 g / pcs |
| GTIN | 4050571485948 |
| Customs duty number | 84812010 |
| RoHS compliant | Yes |
Drawing:
Drawing: Pressure gauge connection for screwing into the measuring hose
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ME MAAG 14 ES.
