Data sheet
Half-round head screw, TORX, 3,0x12, zinc plated steel.
Item number:
SPAN 3X12 HR TX

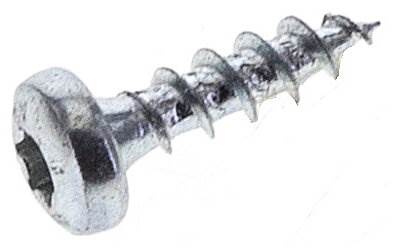

Example illustration
Properties
| Material | Zinc-plated steel, white |
| D [mm] | 3,0 |
| L [mm] | 12 |
| Dk [mm] | 6 |
| TORX size | TX10 (ISZ 10) |
Further information:
| Weight | 0,7 g / pcs |
| GTIN | 4050571151256 |
| Customs duty number | 73181499 |
| Manufacturer | Fischer |
Drawing:
Drawing: Chipboard round-head screw
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SPAN 3X12 HR TX.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 28.03.2025
