Data sheet
seal (dairy thread) DN 100, EPDM (black), 104x114x6mm
Item number:
DNMA 40100 EPDM

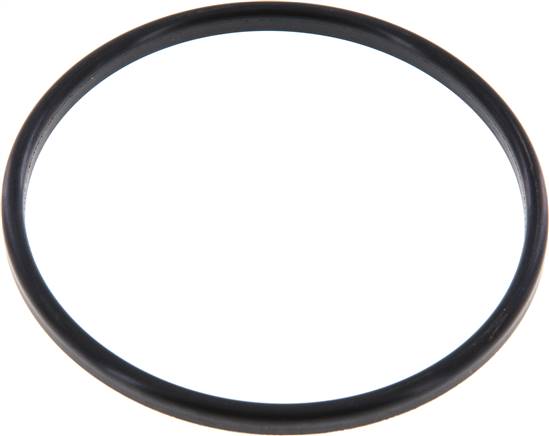

Example illustration
Item description
Version:
All materials conform to the requirements of the ordinances FDA 21 CFR 177.2600, or, as the case may be, FDA 21 CFR 177.1550 and (EC) 1935/2004. Fully encased seals only FDA CFR 177.1550.
Properties
| Material | EPDM (black) |
| d [mm] | 104 |
| D [mm] | 114 |
| H [mm] | 6 |
| for threaded end DN [mm] | 100 |
Further information:
| Weight | 11 g / pcs |
| GTIN | 4050571259761 |
| Customs duty number | 40169300 |
| RoHS compliant | Yes |
Drawing:
Zeichnung: Dichtung für Gewindestutzen (Milchgewinde), DIN 11851
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DNMA 40100 EPDM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 31.03.2025
