Data sheet
3/2-way Mushroom button-valve, black (22,5mm), M5
Item number:
T 22 312 SCHWAR

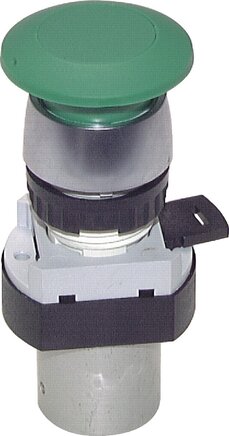

Example illustration
Item description
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10 to +70 °C
Operating pressure:
0 to 12 bar
Flow:
80 l/min (nominal width 2 mm)
Media:
oiled and unoiled filtered compressed air
Pressure input:
Connection 1, venting via lateral borehole in the housing.
Switch panel borehole:
Ø 22,5 mm
Properties
| Actuation | Mushroom button |
| colour | black |
| Thread (2x) | M 5 |
| actuating force [N] | 13 |
| Spare actuators | T 2212 SCHWARZ R |
Further information:
| Weight | 70 g / pcs |
| GTIN | 4050571684952 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Drawing:

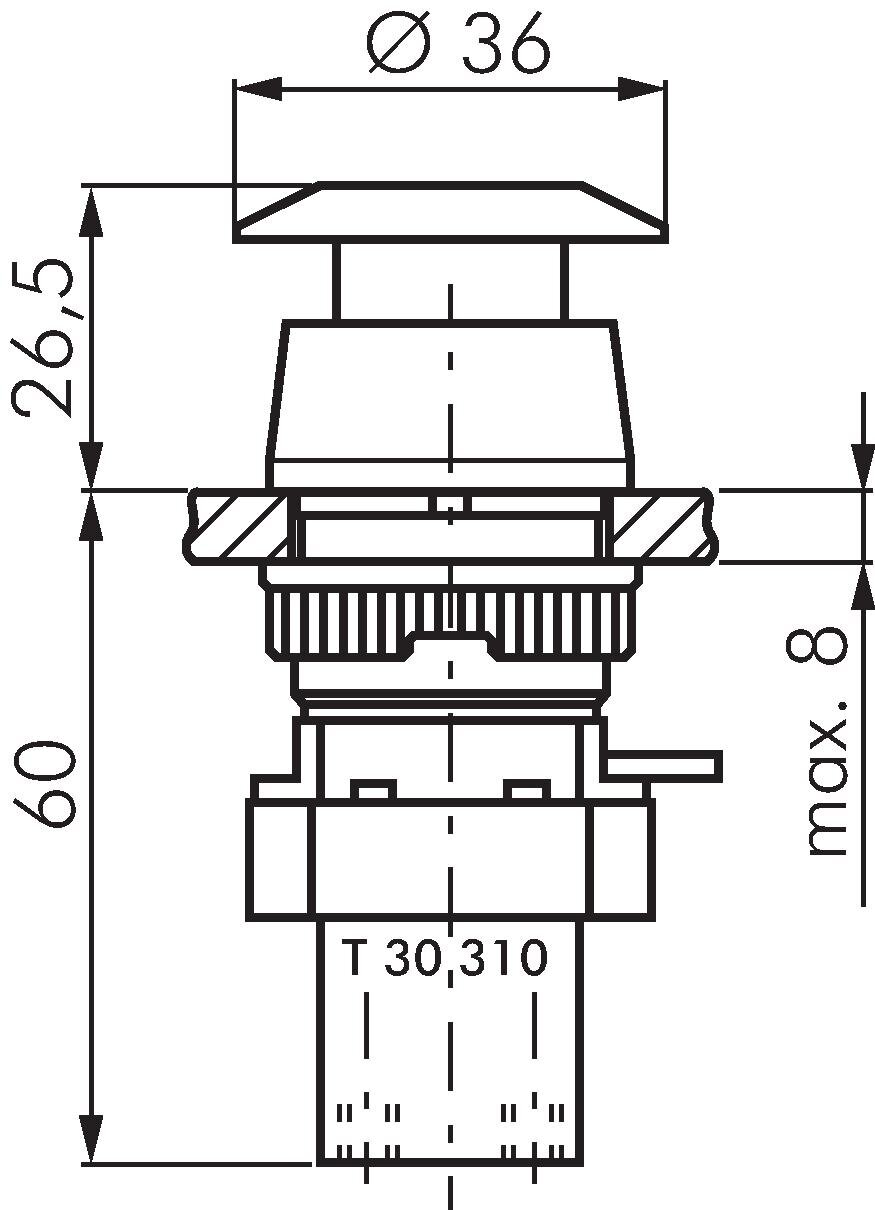

Tekening: 3/2-weg Pilzventiel

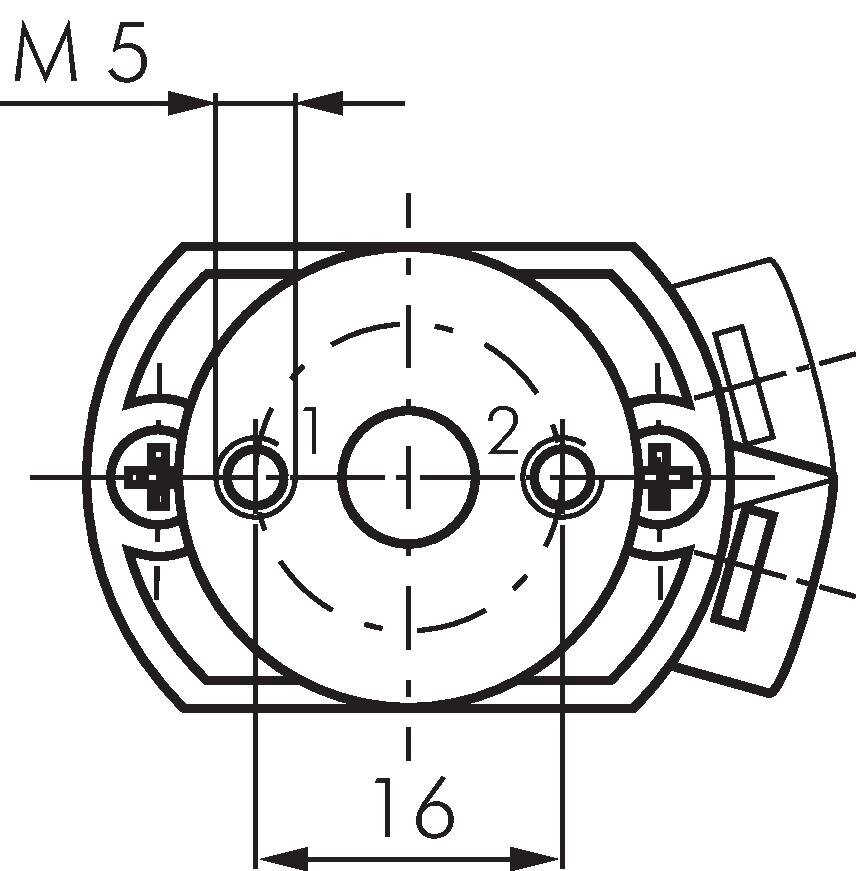

Tekening: Ventielaansluiting
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number T 22 312 SCHWAR.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 26.04.2025
