Data sheet
High pressure rotary joint G 1-1/4", Steel
Item number:
DREH 114 ST

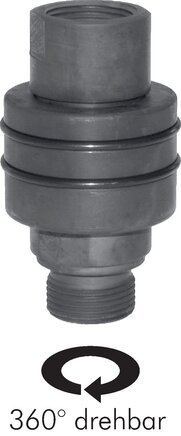

Example illustration
Item description
Suitable:
Between a fixed point and a hose on oscillating machine components. Hose can vibrate due to the ball-bearing shaft under maximum pressure loading.
Materials:
axial seal: "PTFE Compound" (-50°C to max. +260°C), outer seal: NBR
Temperature range:
-40 to +150 °C (pressure dependent)
Optional:
Version in elbow -W
Warning:
To balance out alignment inaccuracies, the use of a flexible connection is imperatively recommended. The rotary joint is constructed for oscillating motions. For use at continuous speed, this must be clarified with the manufacturer.
Properties
| Version | straight |
| Material | Steel |
| Screw-in thread | G 1-1/4" |
| Thread internal | G 1-1/4" |
| DN [mm] | 25 |
| D Ø external [mm] | 60 |
| length [mm] | 111 |
| PN [bar] | 315 |
Further information:
| Weight | 1,3 kg / pcs |
| GTIN | 4050571267049 |
| Customs duty number | 84219910 |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DREH 114 ST.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 28.03.2025
