Data sheet

3/2-way solenoid valve, G 1/4", open (NO), 230 V AC
Item number:
RV 3231-08H-230V

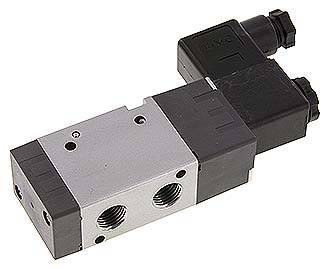

Example illustration
Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Service life:
min. 40 million switching cycles
Structural shape solenoid coil:
T1 (plug size 1)
Information:
The coil and plug are enclosed as loose parts.
Properties
Con­trol volt­age 230 V AC
func­tion open (NO)*
Thread G1 (2x) G 1/4"
Thread ex­haust air G1 (1x) G 1/4"
Nom­i­nal width [mm] 5,6
flow [l/min] 1150
Power con­sump­tion (AC) [VA] 4
Spare so­le­noid coil MAG T1 230V
A [mm] 124,3
B [mm] 40
C [mm] 27
D [mm] 10,5
E [mm] 21,6
F [mm] 30
H1 [mm] 4,3
H2 [mm] 4,3
J [mm] 20
K [mm] 19,1
L [mm] 35
M [mm] 24,6
N [mm] 24
O [mm] 36,6
P [mm] 0
U [mm] 70
V [mm] 40,5
W [mm] 0
Further information:
Weight 270 g / pcs
GTIN 4050571715007
Customs duty number 84812090
Manufacturer EMC
Drawing:
Risba: 3/2-directional solenoid valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RV 3231-08H-230V.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 02.04.2025
