Data sheet
Anti-static compressed air PVC hose 9 (3/8")x16mm
Item number:
P 9 ANTISTATIK

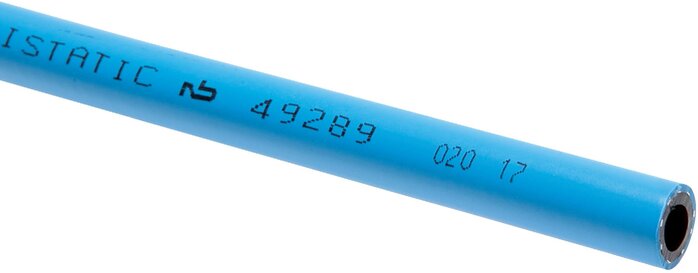

Example illustration
Item description
Materials:
Inner core: PVC black, smooth, antistatic, outer cover: PVC, smooth, weather and oil resistant, fabric insert: Polyester thread
Temperature range:
-20 to +90 °C
Operating pressure:
16 bar (bursting pressure: 64 bar)
Electrical resistance:
R < 1 MOhm / m
Operating range:
Compressed air hose for industry, workshop, fuel service stations and paintshops in antistatic construction. Weatherproof outer cover, good temperature resistance, also suitable for non-aggressive liquids. Suitable for use in drag chains.
Roll length:
20 m
Properties
| Hose diameter (inner) [mm] | 9 (3/8") |
| Hose diameter (outer) [mm] | 16 |
| Min. bend radius [mm] | 30 |
Further information:
| Weight | 185 g / m |
| GTIN | 4050571538767 |
| Packing unit | 20 m |
| Customs duty number | 39173900 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number P 9 ANTISTATIK.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 27.04.2025
