Data sheet
PA coil tube R 1/4"-8 x 6 mm, 5,0 mtr. Working length ECO
Item number:
SPKD 148/5 E

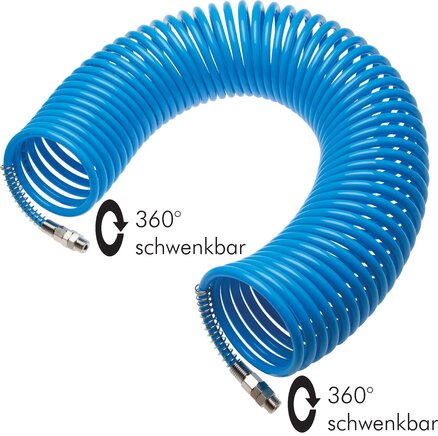

Example illustration
Item description
Properties:
Polyamide spiral hoses are characterised by their high operating pressures, high thermal stability, good chemicals resilience (weather resistance), good kink resistance and high recovery force. For this reason, they are also often used in truck air brake systems.
Materials:
PA 12 W
Temperature range:
-40 to +90 °C
Colour:
blue
Advantages:
•with pivoting connections for slow rotary movements to avoid twisting of the hoses
Properties
| Operating length [MTR] | 5,0 |
| Hose diameter (outer x inner) [mm] | 8 x 6 |
| Thread | R 1/4" |
| Operating pressure [bar] | 19 |
| Winding diameter (inner) [mm] | 75 |
| Standard | DIN 73378 |
Further information:
| Weight | 320 g / pcs |
| GTIN | 4050571636302 |
| Customs duty number | 39173300 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SPKD 148/5 E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 27.04.2025
