Data sheet
3/2-way (NC/NO) Limit switch with Roller lever, G 1/8"
Item number:
ER 18 310

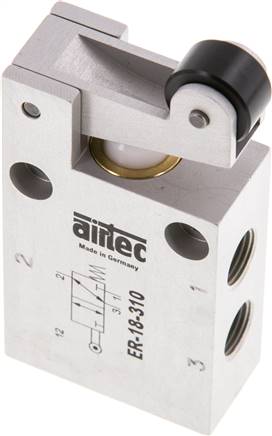

Example illustration
Item description
Materials:
Body: anodised aluminium, interior parts: brass, stainless steel and aluminium, seals: NBR, lever: aluminium, plunger and castor: steel and plastic
Temperature range:
-10 to +70 °C
Operating pressure:
0 to 12 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Type NC/NO: possible at every connection
Properties
| function | 3/2-way (NC/NO) |
| Actuation | Roller lever |
| Thread (2x) | G 1/8" |
| Thread exhaust air (1x) | G 1/8" |
| Nominal width [mm] | 4 |
| flow [l/min] | 320 |
| Actuating force at 6 bar [N] | 17 |
Further information:
| Weight | 95 g / pcs |
| GTIN | 4050571283872 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ER 18 310.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 06.04.2025
