Data sheet
Kamlock coupling (C) 19 (3/4")mm hose, Aluminium
Item number:
KLDS 19 A

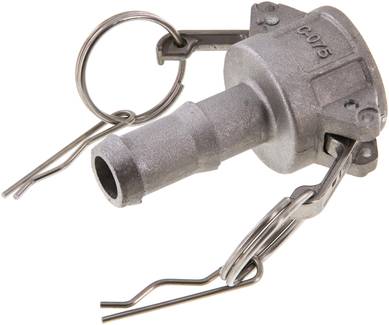

Example illustration
Item description
Materials:
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10 to +80 °C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
Properties
| Material | Aluminium |
| Hose diameter (inner) [mm] | 19 (3/4") |
| DN [mm] | 20 (3/4") |
| for plug diameter [mm] | 32,1 |
| PN [bar] | 18 |
Further information:
| Weight | 120 g / pcs |
| GTIN | 4050571163433 |
| Customs duty number | 76090000 |
| RoHS compliant | Yes |
Drawing:
Zeichnung: Größenbestimmung Kamlock-Kupplungsdosen
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KLDS 19 A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 28.03.2025
