Data sheet

Distance sealing ring G 1/4"
Item number:
DR GRL 14 S

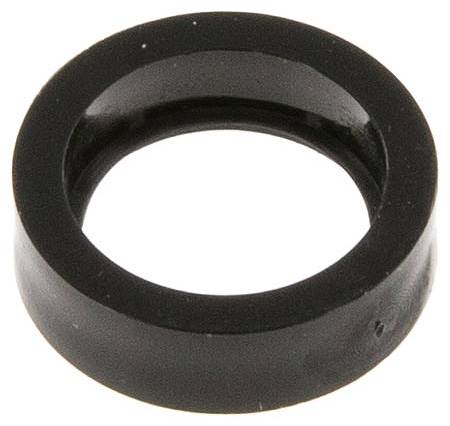

Example illustration
Item description
Materials:
Polyamide, black
Temperature range:
-20 to +80 °C
Advantages:
•as spacer ring when using banjo bolts,
•as seal and spacer ring when used with the OR GRL O-ring .. when using banjo bolt valves
Properties
Ver­sion Dis­tance seal­ing ring
for threads G 1/4"
D1 [mm] 13,7
D2 [mm] 18
D3 [mm] 12,2
H1 [mm] 4,50
H2 [mm] 5,5
O-​rings OR GRL 14
Further information:
Weight 0,9 g / pcs
GTIN 4050571269777
Customs duty number 84812090
RoHS compliant Yes
Drawing:
Zeichnung: Distanzdichtring für Hohlschraubenventile
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DR GRL 14 S.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 04.04.2025
