Data sheet

Y-type check valve, Rp 1-1/2", DVGW, brass
Item number:
RUCK 112 SS DVGW

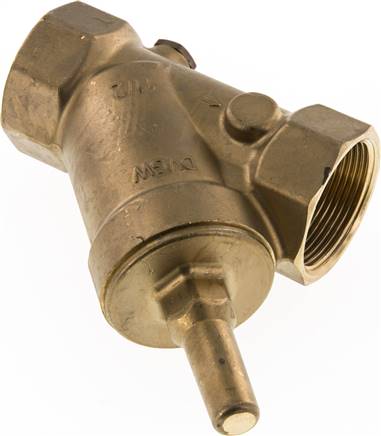

Example illustration
Item description
Materials:
Body: brass, seat seal: NBR (type DVGW & Rp 2-1/2" - Rp 3": EPDM)
Temperature range:
-10 to +90 °C
Opening pressure:
0,1 to 0,2 bar
Optional:
FKM seal (to 2", -20°C to max. +200°C) -V
Advantages:
•Length according to DIN 3202-M8, with test screw,
•Type DVGW additionally DIN-DVGW certified for drinking water pipes
Properties
Ver­sion DVGW
Seals EPDM
G Rp 1-1/2"
L [mm] 120
H [mm] 97
PN [bar] 10
Further information:
Weight 1,3 kg / pcs
GTIN 4050571853280
Customs duty number 84813099
RoHS compliant Yes
Drawing:
Zeichnung: Schrägsitz-Rückschlagventil
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RUCK 112 SS DVGW.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 26.03.2025
