Data sheet
T compression ring fitting R 1/4"-8 (M12x1)mm, brass
Item number:
KLE 148 MS

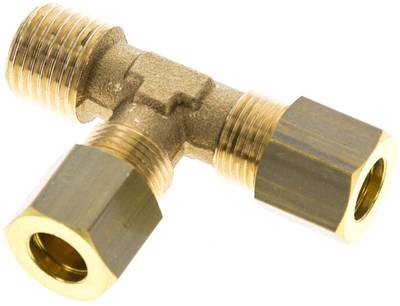

Example illustration
Item description
Temperature range:
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
Properties
| Pipe diameter (outer) [mm] | 8 (M12x1) |
| Screw-in thread | R 1/4" |
| Operating pressure with hard copper tube [bar] | 135 |
| Temperature range [°C] | -60 to +300 |
Further information:
| Weight | 44 g / pcs |
| GTIN | 4050571433918 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KLE 148 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 04.04.2025
