Data sheet
Steel cable clamp f. 10,0mm cable, M 8,B=20, 1.4436
Item number:
DSK 10 ES
Example illustration
Item description
Suitable:
Steel cable clamps are designed for the manufacture of removable cable-end connections.
Properties
| Material | 1.4436 |
| for rope diameter [mm] | 10,0 |
| G | M 8 |
| H [mm] | 42 |
| B [mm] | 20 |
Further information:
| Weight | 55 g / pcs |
| GTIN | 4050571275037 |
| Customs duty number | 73259990 |
| RoHS compliant | Yes |

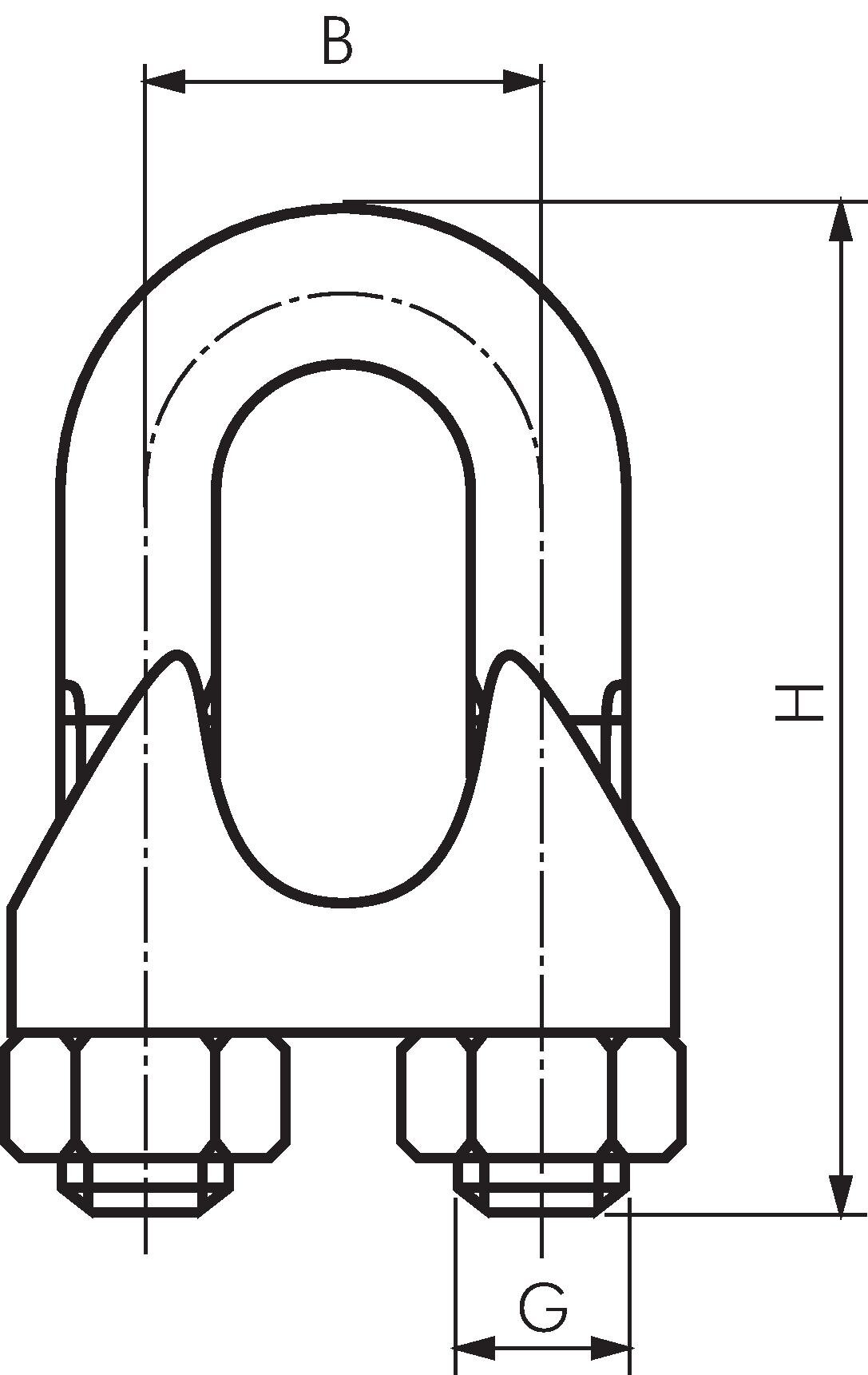

Drawing:
Zeichnung: Drahtseilklemme
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DSK 10 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 26.04.2025
