Data sheet
Round steel U-bolt clamps, M 10, 44,5 to 48,3mm, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
RSB 48

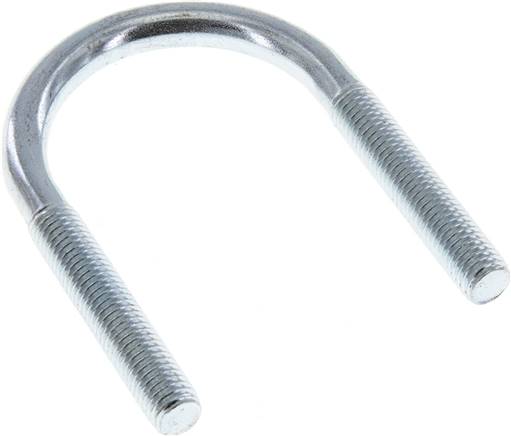

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
Round steel clamps are supplied without with shell and nuts.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| D [mm] | 44,5 - 48,3 |
| G | M 10 |
| L [mm] | 50 |
| B [mm] | 62 |
| H [mm] | 92 |
| Suitable nuts | 934-M10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 100 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571605407 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Drawing:
Zeichnung: Rundstahlbügel
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RSB 48.
