Data sheet
90°-elbow,UNF 7/16"-20 AG (JIC), AISI 316
Item number:
WA 7/16 JIC ES
Example illustration
Properties
| Material | AISI 316 |
| Thread | UNF 7/16"-20 |
| PN* [bar] | 450 |
Further information:
| Weight | 25 g / pcs |
| GTIN | 4050571736835 |
| Customs duty number | 73072210 |
| RoHS compliant | Yes |
Drawing:

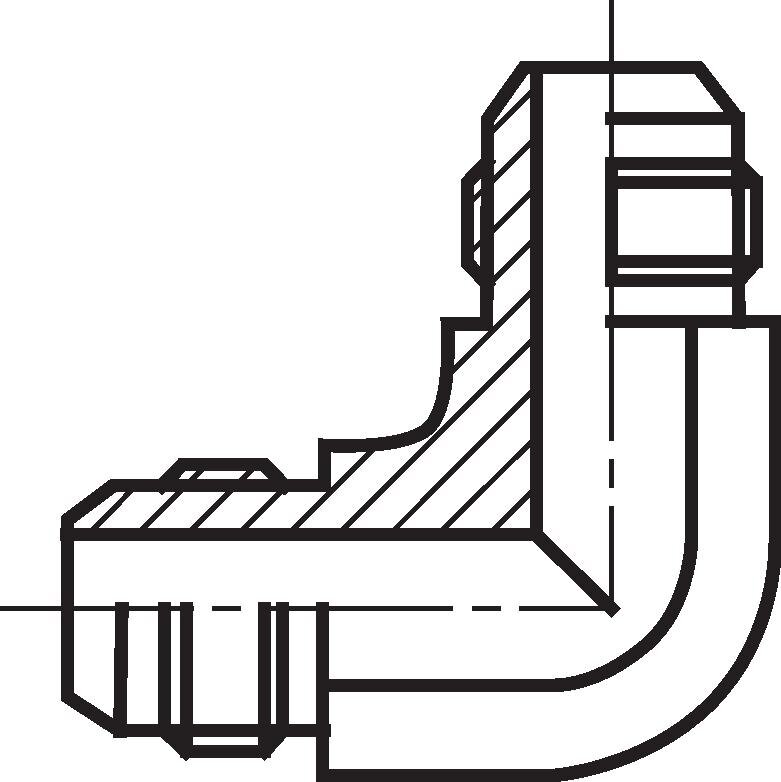

Drawing: 90° elbow fitting with JIC (male)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number WA 7/16 JIC ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 10.05.2025
