Data sheet
90° elbow, 60° cone G 1-1/4"-G 1-1/4" (male thread), Zinc plated steel
Item number:
WA 114 HD
Example illustration
Properties
| Material | Zinc plated steel |
| Thread G1 | G 1-1/4" |
| Thread G2 | G 1-1/4" |
| PN* [bar] | 190 |
Further information:
| Weight | 550 g / pcs |
| GTIN | 4050571736323 |
| Customs duty number | 73079290 |
| RoHS compliant | Yes |

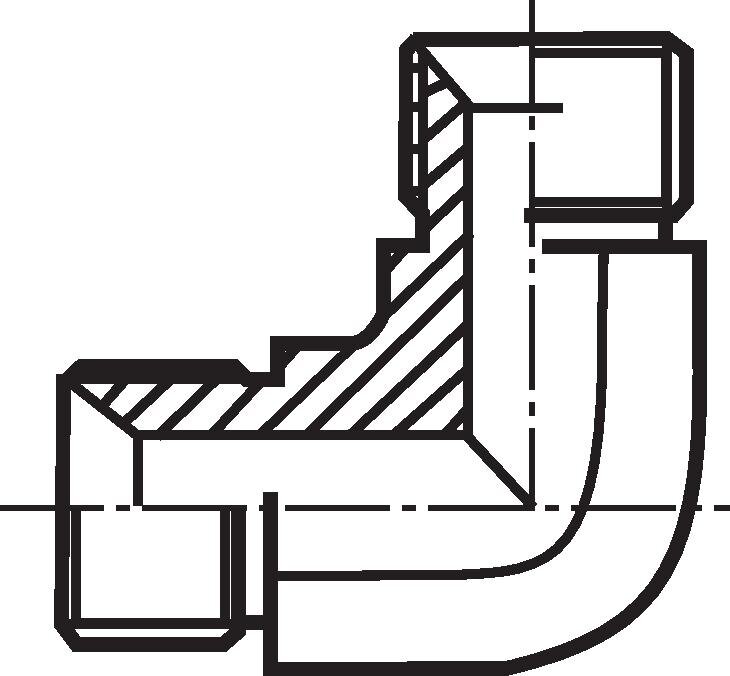

Drawing:
Zeichnung: Winkel-Verschraubung 90° mit G-Gewinde (60° Universaldichtkegel, außen)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number WA 114 HD.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
