Data sheet
Straight connector 60° cone, G 1"-G 1/2", Zinc plated steel
Item number:
GV 1012

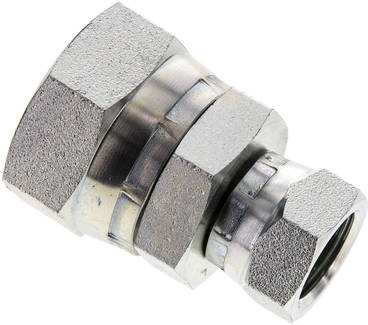

Example illustration
Properties
| Material | Zinc plated steel |
| Union nut with 60° external cone | G 1" |
| Union nut with 60° external cone | G 1/2" |
| PN* [bar] | 150 |
Further information:
| Weight | 310 g / pcs |
| GTIN | 4050571347963 |
| Customs duty number | 73269098 |
Drawing:
Kresba: Prímé šroubové spojení se závitem G (60° univerzální tesnící kužel, vnitrní)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GV 1012.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 26.04.2025
