Data sheet
Double nipple G 1-1/4"-G 3/4", Nickel-plated brass
Item number:
DN 11434 MSV

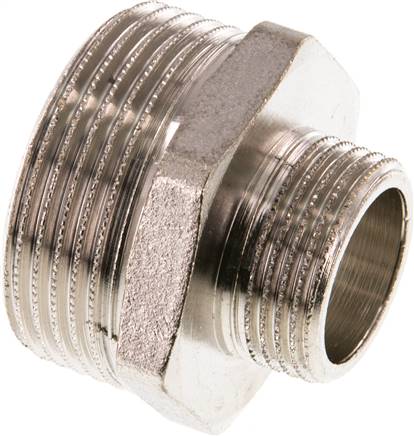

Example illustration
Properties
| Material | Nickel-plated brass |
| Thread | G 1-1/4" |
| Thread | G 3/4" |
| PN [bar] | 16 |
| SW [mm] | 42 |
Further information:
| Weight | 125 g / pcs |
| GTIN | 4050571254896 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DN 11434 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 02.04.2025
