Data sheet
Ball valve, PVC-U/ FKM, Rp 1/2" (industrial version)
Item number:
KH 12 PVCFKM
Example illustration
Item description
Advantages:
•radial can be installed and removed,
•safe-float ball,
•optimum flow properties
•safe-float ball,
•optimum flow properties
Temperature range:
0°C to +60°C, (material PP-H: 0°C to +100°C)
Materials:
Body and ball: PVC-U, ball seat: PTFE
Operating pressure:
0 to 16 bar
Note:
•Do not use any thread sealing agent that damages PVC-U, only for plastic thread
Special quality features:
Ball valve 100% tested
Warning:
Not suitable for compressed air or other gases under pressure!
Properties
| Seals | FKM |
| Female thread G | Rp 1/2" |
| DN [mm] | 15 |
| H [mm] | 80 |
| L [mm] | 15 |
| Z [mm] | 50 |
| E [mm] | 49 |
| B [mm] | 50 |
| C [mm] | 64 |
| Flow* [l/min] | 190 |
Further information:
| Weight | 135 g / pcs |
| GTIN | 4050571409418 |
| Customs duty number | 39174000 |
| RoHS compliant | Yes |

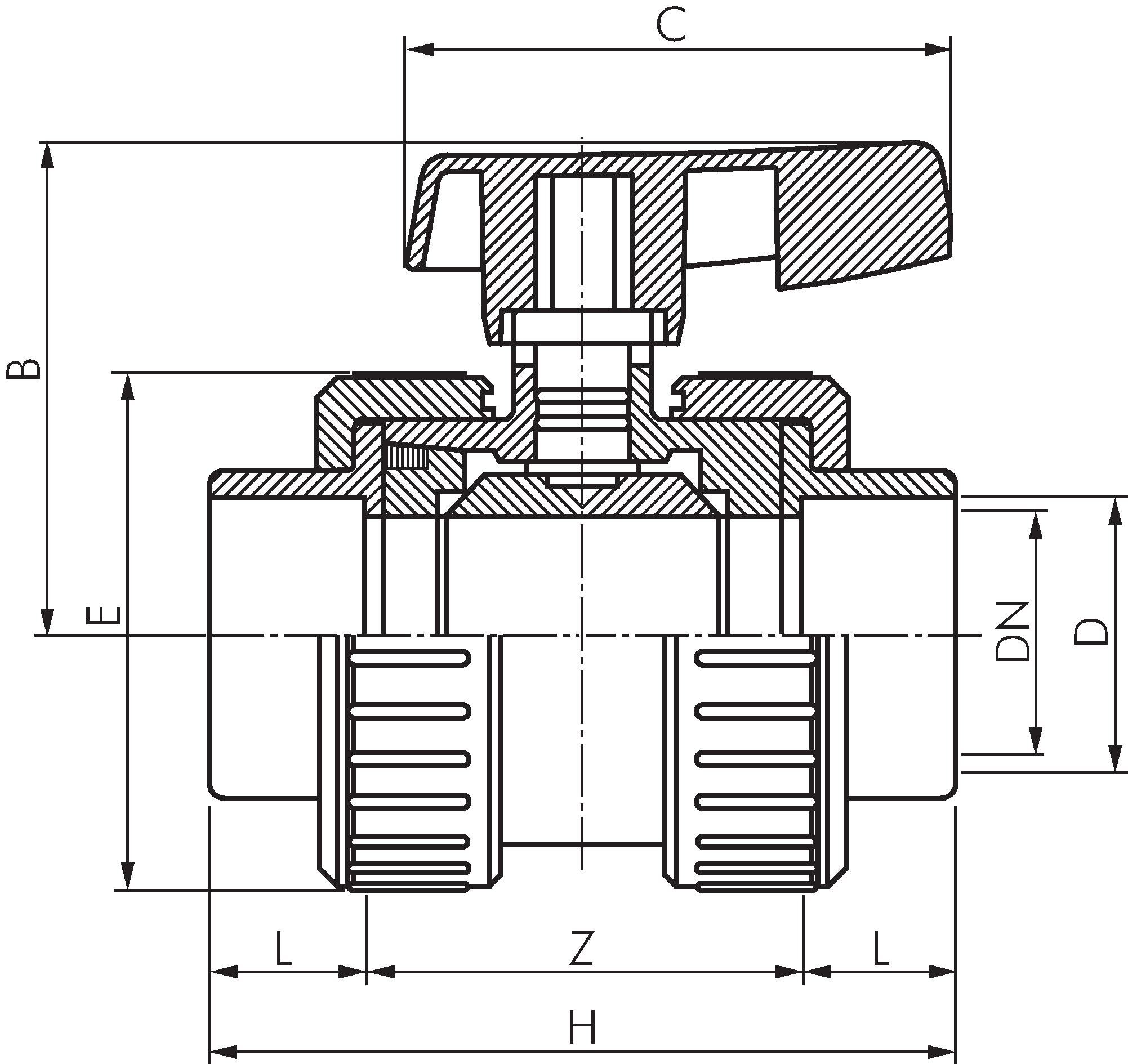

Drawing:
Zeichnung: Kugelhähne mit Innengewinde, PVC-U (Industrieausführung)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 12 PVCFKM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 26.04.2025
