Data sheet
Z (3 Axles)swivel joint NPT 3/8"(male thread)-NPT 1/2"(Female thread)
Item number:
DREHZ 38 NPT

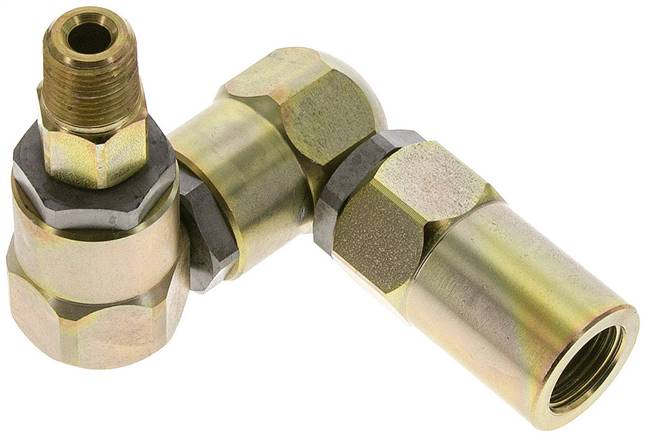

Example illustration
Item description
Suitable:
Usage between a fixed point and a hose connected to rotating or oscillating machine components or cranes. For swivelling movements up to max. 20 rpm, uninterrupted rotational motion.
Materials:
Body: zinc-plated steel, seals: NBR
Media:
Hydraulic oil or oiled compressed air
Temperature range:
-20 to +90 °C
Suitable:
Z rotary joints are used between a fixed point and a hose connected to rotating or oscillating machine components. Z joints rotate around three axles.
Properties
| Version | Z (3 Axles) |
| Cushion R | NPT 3/8" |
| Holding thread G | NPT 1/2" |
| DN [mm] | 7,5 |
| Sealing material | PTFE |
Further information:
| Weight | 850 g / pcs |
| GTIN | 4050571268954 |
| Customs duty number | 73079910 |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DREHZ 38 NPT.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 26.03.2025
