Data sheet
Sleeve brass galvanised, G 3/4"-19 (3/4")mm, without nuts
Item number:
S 3419 MSV

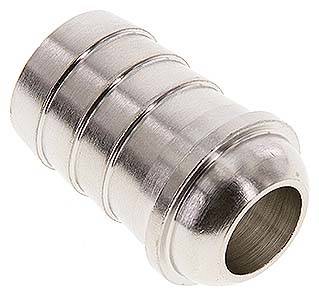

Example illustration
Item description
Warning:
•Design of the sockets and union nuts varies according to the manufacturer and material. Mixing of the individual parts with other manufacturers or materials is not recommended.
•Many nickel-plated threaded nozzles or double nipples are not equipped with an internal cone. We therefore recommend the use of threaded nozzles of brass (bright).
•Many nickel-plated threaded nozzles or double nipples are not equipped with an internal cone. We therefore recommend the use of threaded nozzles of brass (bright).
Properties
| Material | Sleeve brass galvanised |
| Hose diameter (inner) [mm] | 19 (3/4") |
| Union nut | UM 34 MSV |
| Thread (G) | G 3/4" |
| L [mm] | 13,5 |
| SW [mm] | 30 |
Further information:
| Weight | 37 g / pcs |
| GTIN | 4050571889210 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
Drawing:
Drawing: Union nut for grommet
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number S 3419 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
