Data sheet

Adhesive/thread connection, PVC-U/ FKM, 25mmxG 3/4" AG
Item number:
PVCGVAG 2534 FKM

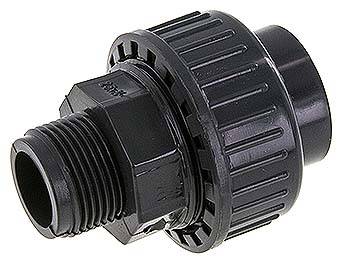

Example illustration
Item description
Fitting of PVC-U (EN 1452-3)
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Materials:
O-ring: EPDM / FKM
Warning:
Not suitable for compressed air or other gases under pressure!
Properties
O-​ring ma­te­r­ial FKM
Inner di­am­e­ter d [mm] 25
Ex­ter­nal thread G G 3/4"
Outer di­am­e­ter D [mm] 54
Length L1 [mm] 19
Length L2 [mm] 17
Z [mm] 33
Further information:
Weight 80 g / pcs
GTIN 4050571556020
Customs duty number 39174000
RoHS compliant Yes
Drawing:
Zeichnung: PVC-Verschraubung mit Klebemuffe & Außengewinde
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PVCGVAG 2534 FKM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 29.03.2025
