Data sheet
3/2-way shut-off valve, G 3/8", Eco-Line 3A
Item number:
EAS 3000-03

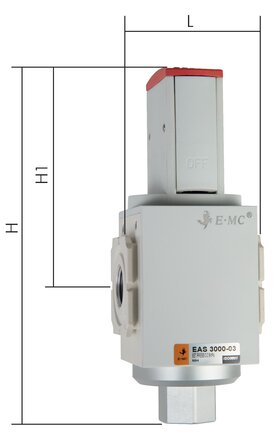

Example illustration
Item description
Materials:
Body: aluminium, manual actuation: ABS, seals: NBR
Temperature range:
-5 to +60 °C
Input pressure:
0 to 10 bar
Media:
Compressed air, neutral gases
Scope of delivery:
Shut-off valve including mounting bracket, but without exhaust air muffler
Advantages:
•Easy assembly of individual components of a series using coupling kits,
•Mounting brackets included in the scope of delivery,
•Pressing the two actuation buttons simultaneously will interrupt the compressed air supply and vent the secondary side,
•The VHS 20 padlock can be used to protect the valve against unauthorised restarting when vented.
•Mounting brackets included in the scope of delivery,
•Pressing the two actuation buttons simultaneously will interrupt the compressed air supply and vent the secondary side,
•The VHS 20 padlock can be used to protect the valve against unauthorised restarting when vented.
Properties
Further information:
| Weight | 480 g / pcs |
| GTIN | 4050571940768 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EAS 3000-03.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 12.05.2025
