Data sheet

ISO valve (size 1), 5/3-way Centre position closed, 230 V AC
Item number:
MI 01530HN 230V

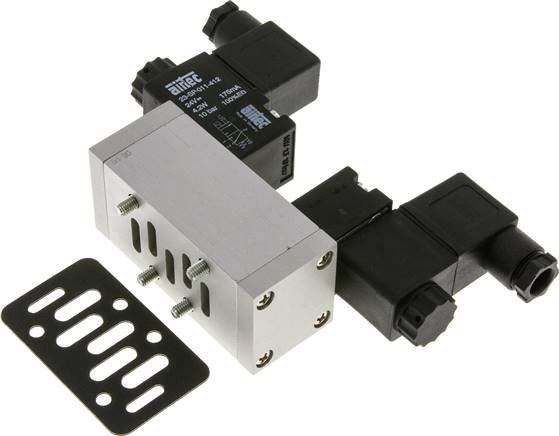

Example illustration
Item description
Materials:
Body: anodized aluminium, internal parts: stainless steel and brass, seal: plastic, NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Properties
Con­trol volt­age 230 V AC
Switch­ing 5/3-way
func­tion Cen­tre po­si­tion closed
ISO size 1
flow [l/min] 1610
Op­er­at­ing pres­sure [bar] 3 - 10
Power con­sump­tion (AC) [VA] 4
Spare so­le­noid coil MAG N 230V
Further information:
Weight 550 g / pcs
GTIN 4050571491963
Customs duty number 84812090
RoHS compliant Yes
Manufacturer Airtec (WEEE DE94696834 )
Drawing:
Drawing: Connection diagram ISO 5999-1 (size 1)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MI 01530HN 230V.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 31.03.2025
